Front Door Window Glass: Service and Repair

Front Glass:

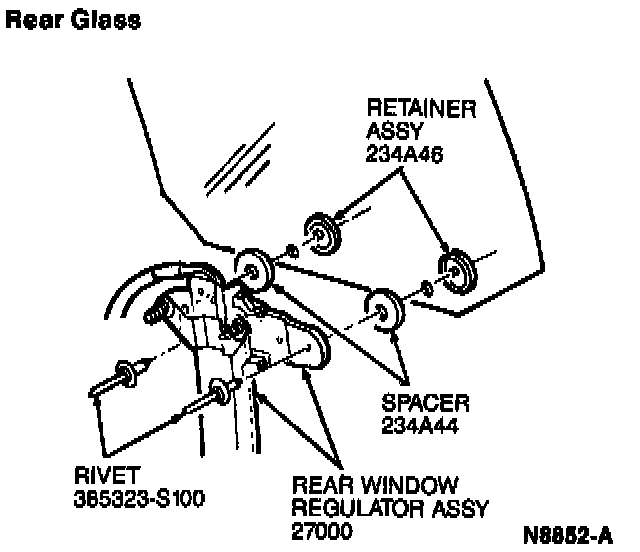

Rear Glass:

Removal

1. Remove door trim panel and watershield. Doors

2. Loosen glass run retainer retaining screw and position retainer forward.

3. Lower glass to gain access to two glass bracket rivets and remove the center pins from rivets using a drift punch. Using a 1/4-inch diameter drill, drill out remainder of rivets.


Front Glass

CAUTION:
Do not attempt to pry out the rivets as damage to the glass could result.

NOTE:
Prior to removing the rivet center pins, it is recommended that a suitable block support be placed between the door outer panel and the glass bracket to stabilize the glass during rivet removal.

4. Remove glass.


Installation

1. Insert glass into door between outer belt weatherstrip and inner panel.

2. Position glass into door frame and lower window to align with regulator bracket.

3. Install two 1/4-inch rivets using Rotunda Blind Fastener Installation Tool 107-00600 or equivalent (use of 1/4-20 X 1 inch screw and washer assemblies and 1/4-inch-20 nut and washer assemblies is optional). Equivalent metric fasteners may also be used.

NOTE:
Torque must not exceed 9-14 N-m (7-10 lb-ft).

4. Adjust door glass.

5. Install watershield, door trim panel and armrest. Doors
