Test F1 - F6
Test F1 - F6

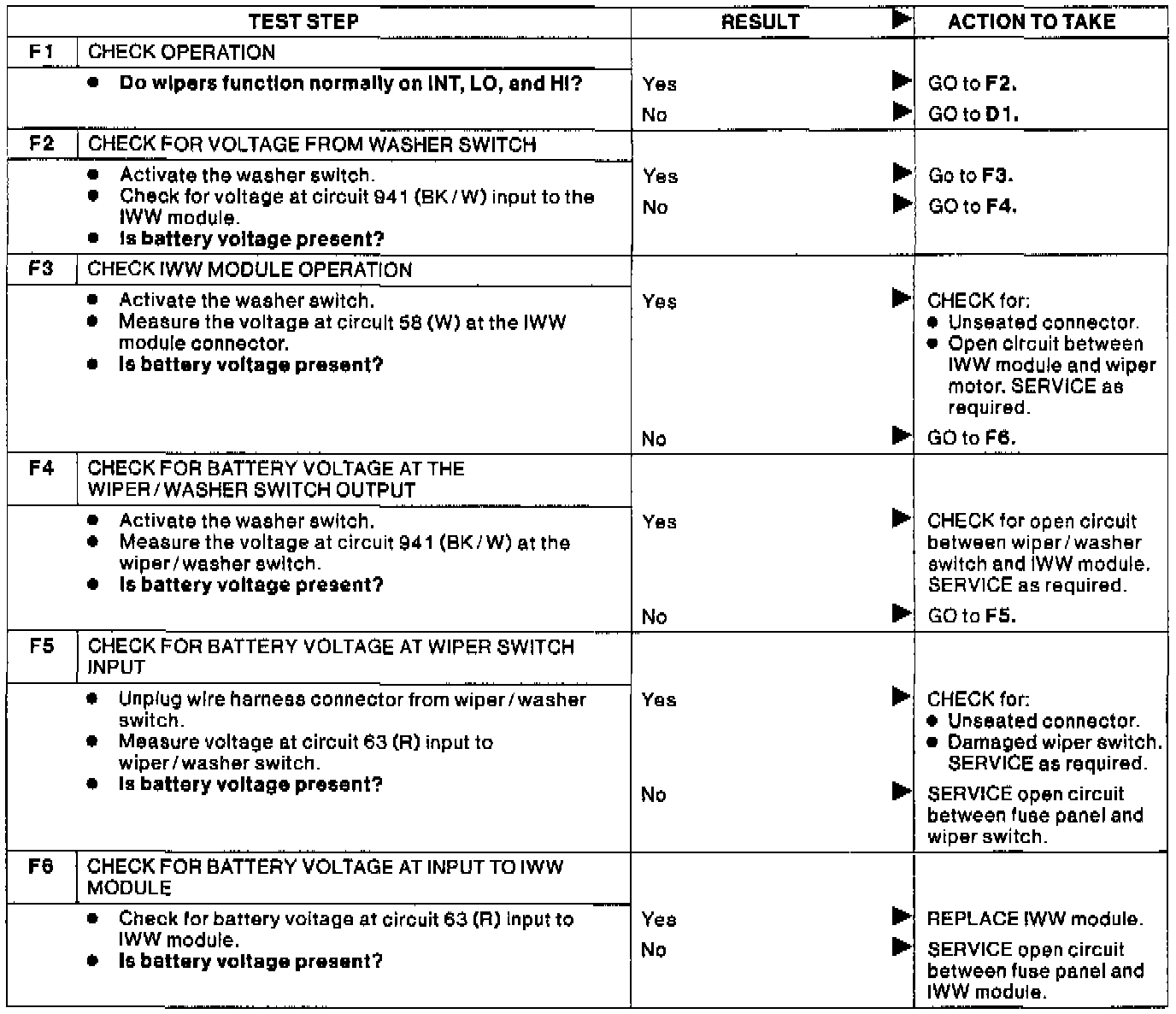

Fig. 38 Diagnostic Pinpoint Test F, Wipers Do Not Wipe After Wash Switch Is Pulled. Thunderbird/Cougar, Mustang, Tempo/Topaz:
