Home >> Mercury >> 1993 >> Cougar/XR7 V8-302 5.0L HO >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Diagrams >> Driver's Power Window Switch >> With Keyless Entry

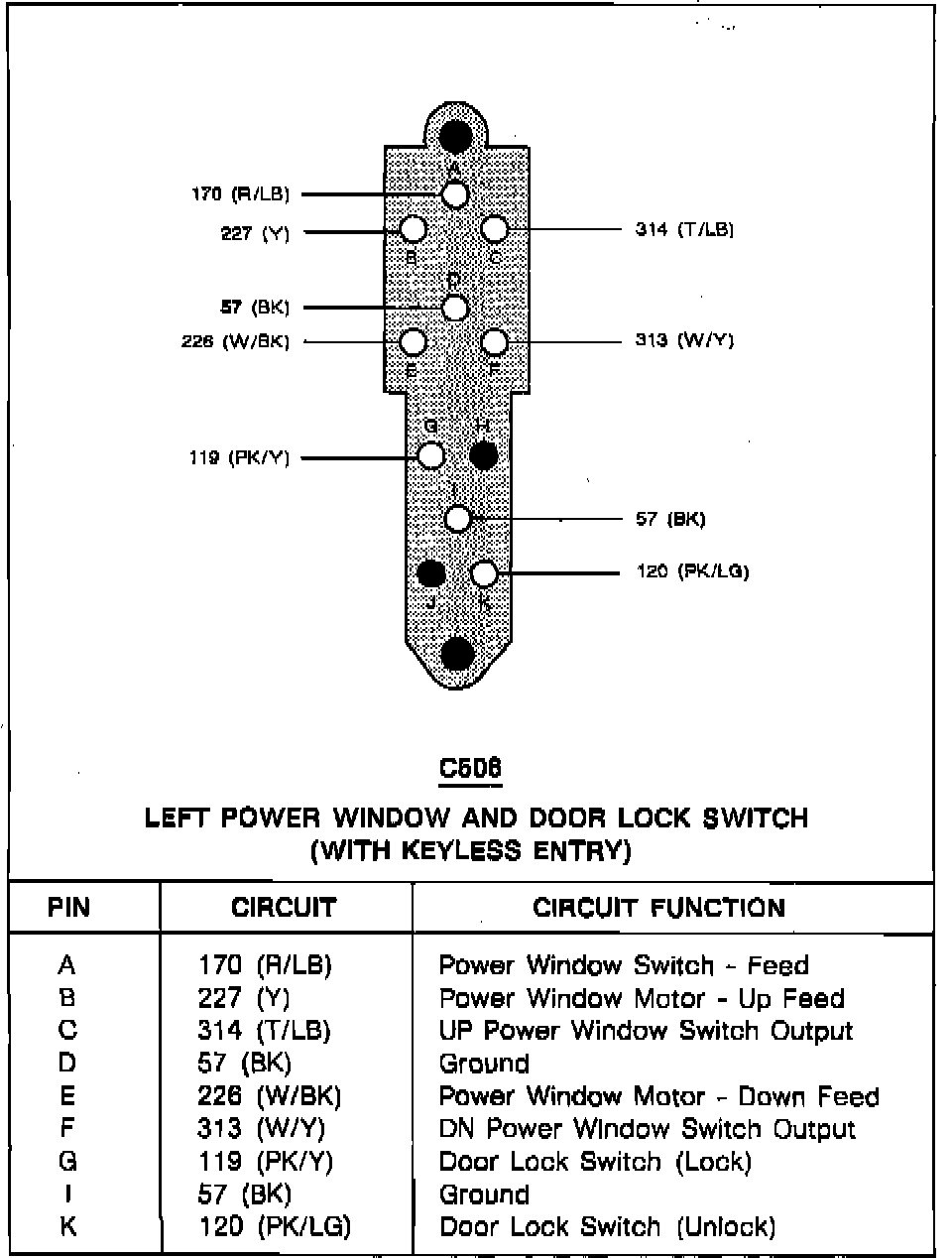

With Keyless Entry

Left Power Window And Door Lock Switch (Without Keyless Entry):
