Home >> Mercury >> 1993 >> Cougar/XR7 V8-302 5.0L HO >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Headlamp Switch >> Testing and Inspection >> With Autolamps

With Autolamps

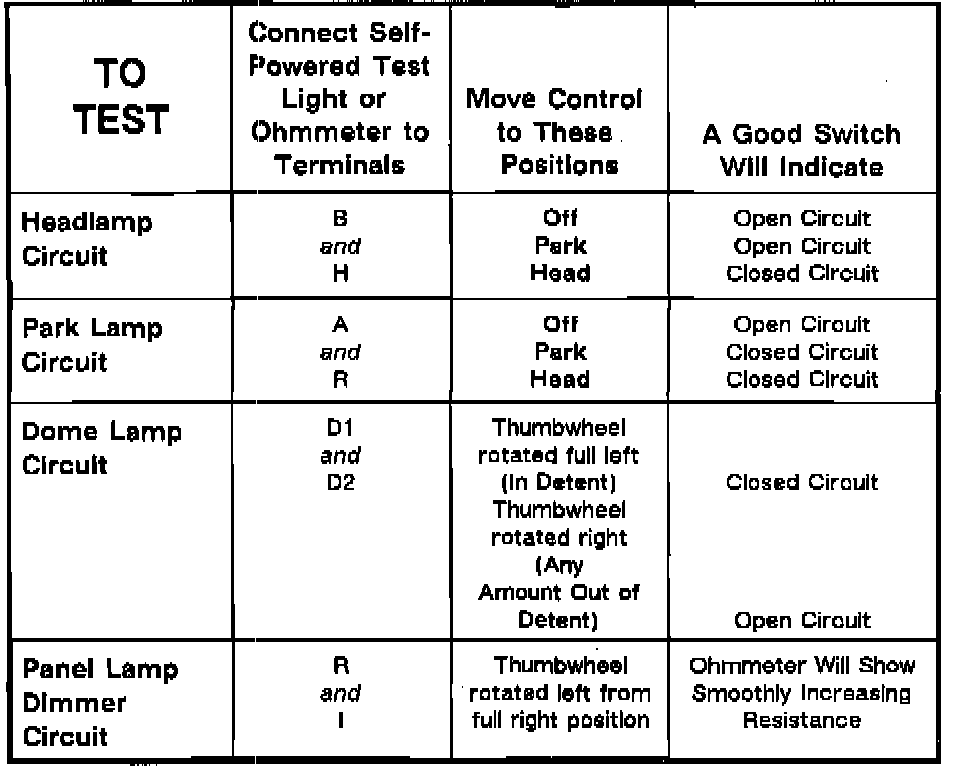

Component Testing Procedure:

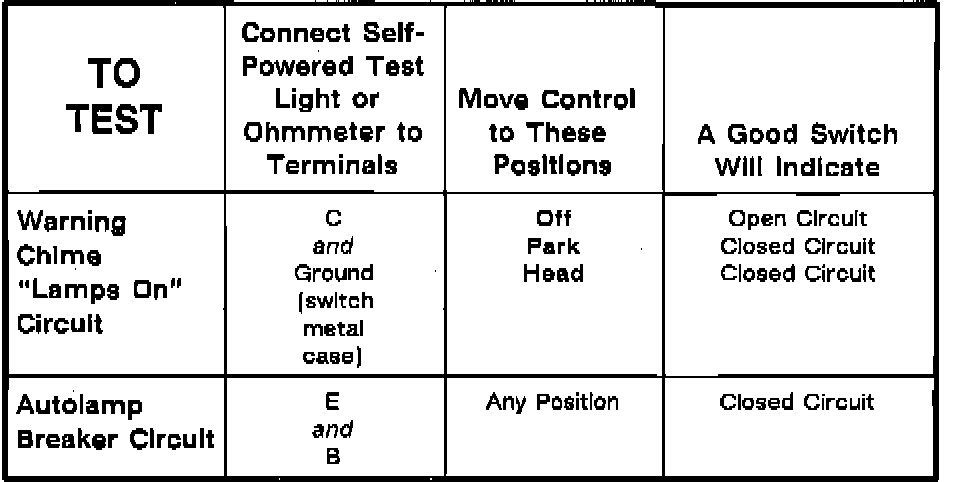

Component Testing Procedure:





COMPONENT TESTING PROCEDURE

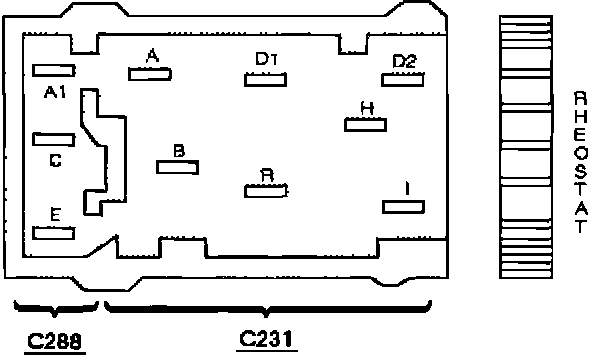

Terminal Locations:






TERMINAL IDENTIFICATION


Schematic Main Light With Autolamps:






SCHEMATIC
