Mercury
>>
1993
>>
Cougar/XR7 V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Instrument Panel
>>
Fuel Gauge Sender
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test A1 - B2
Test A1 - B2

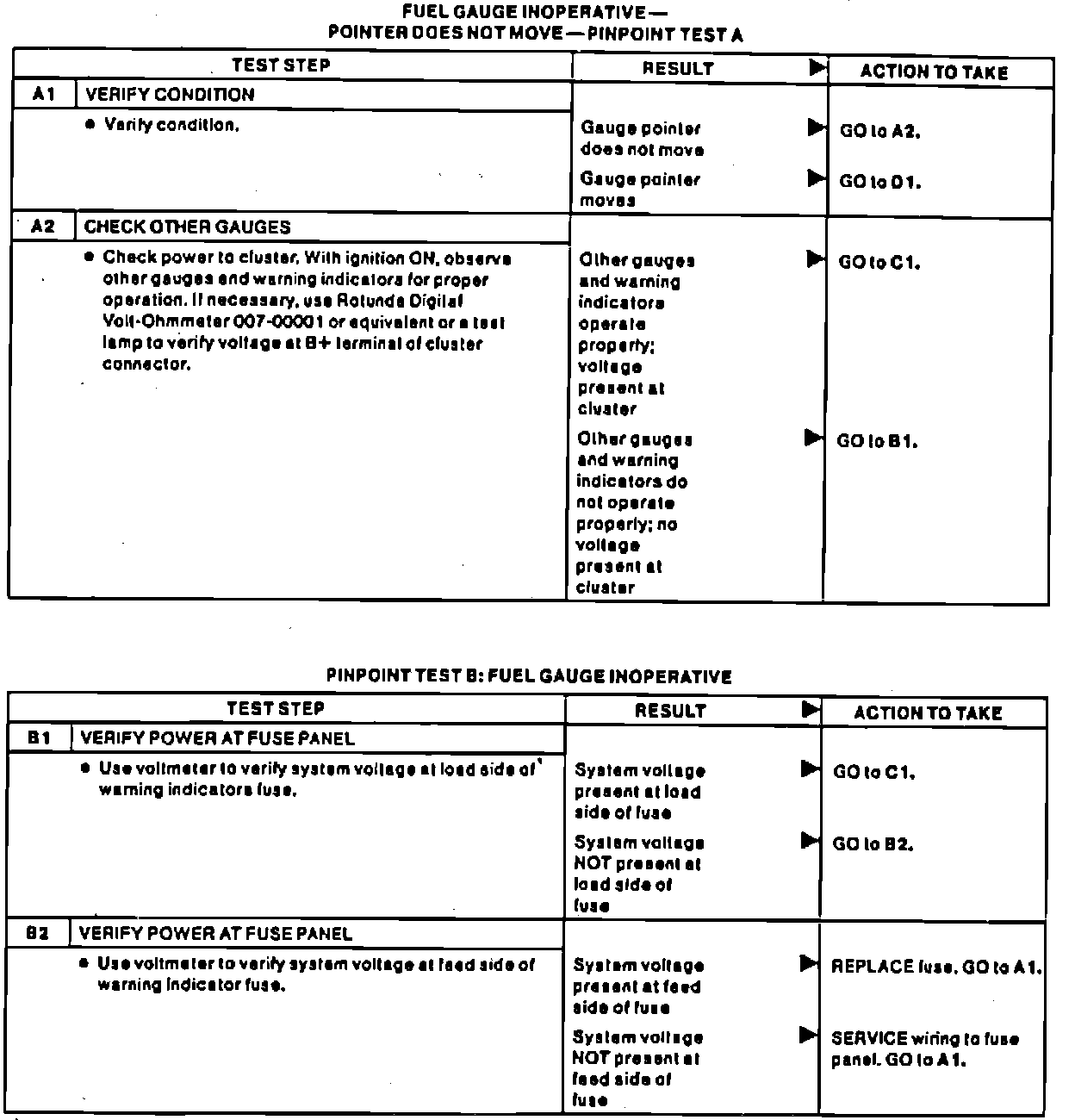

Fig. 1 Fuel Indicating System Diagnosis (Part 1 Of 5). Models w/Magnetic Gauge:
