Home >> Mercury >> 1993 >> Cougar/XR7 V8-302 5.0L HO >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Air Injection >> Testing and Inspection >> Secondary Air Injection Functional Diagnosis >> AIR33A Check Vacuum Reservoir Function

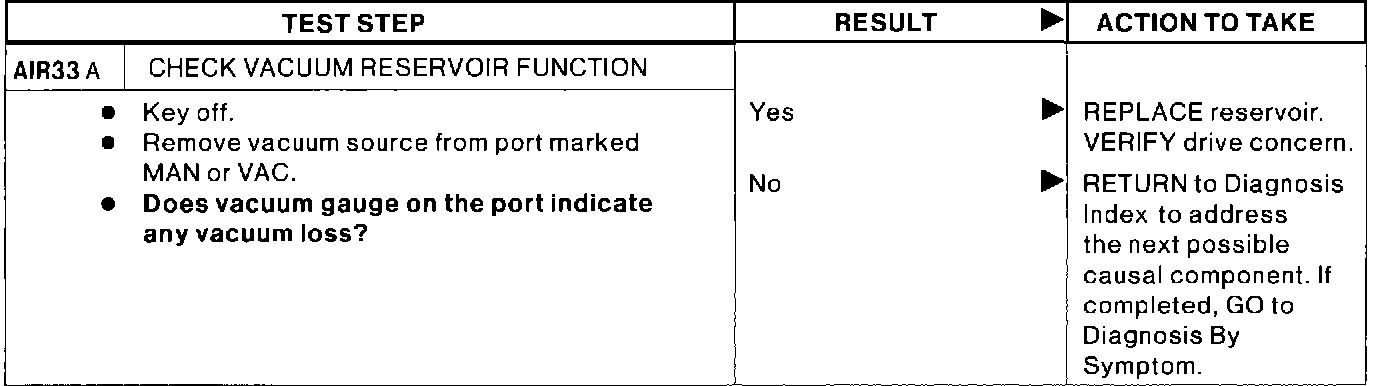

AIR33A Check Vacuum Reservoir Function

AIR33a Check Vacuum Reservoir Function:
