FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1993
>>
Cougar/XR7 V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Air Injection
>>
Testing and Inspection
>>
Secondary Air Injection Functional Diagnosis
>>
AIR31 - Check Vacuum Reservoir Ability to Hold Vacuum
AIR31 - Check Vacuum Reservoir Ability to Hold Vacuum

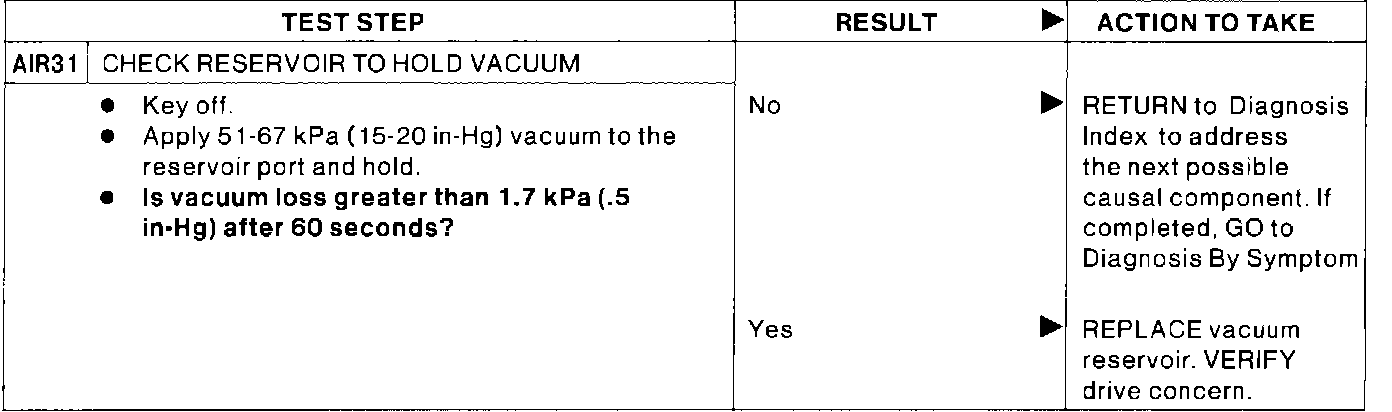

AIR31 - Check Reservoir To Hold Vacuum:
AIR 31 Check Reservoir To Hold Vacuum:
