Air Injection Muffler: Description and Operation

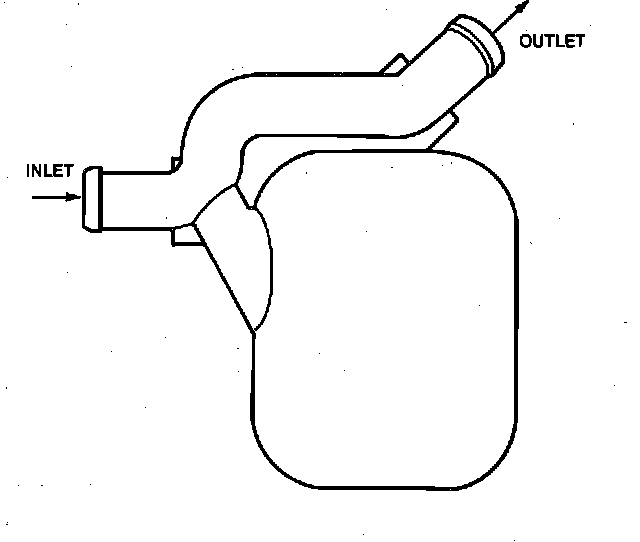

Air Pump Resonator:






The AIR pump resonator reduces air dump noise during some cruise modes and during cold start.
