DN - EGR Valve Position Sensor/EGR Vacuum Regulator Solenoid
>>

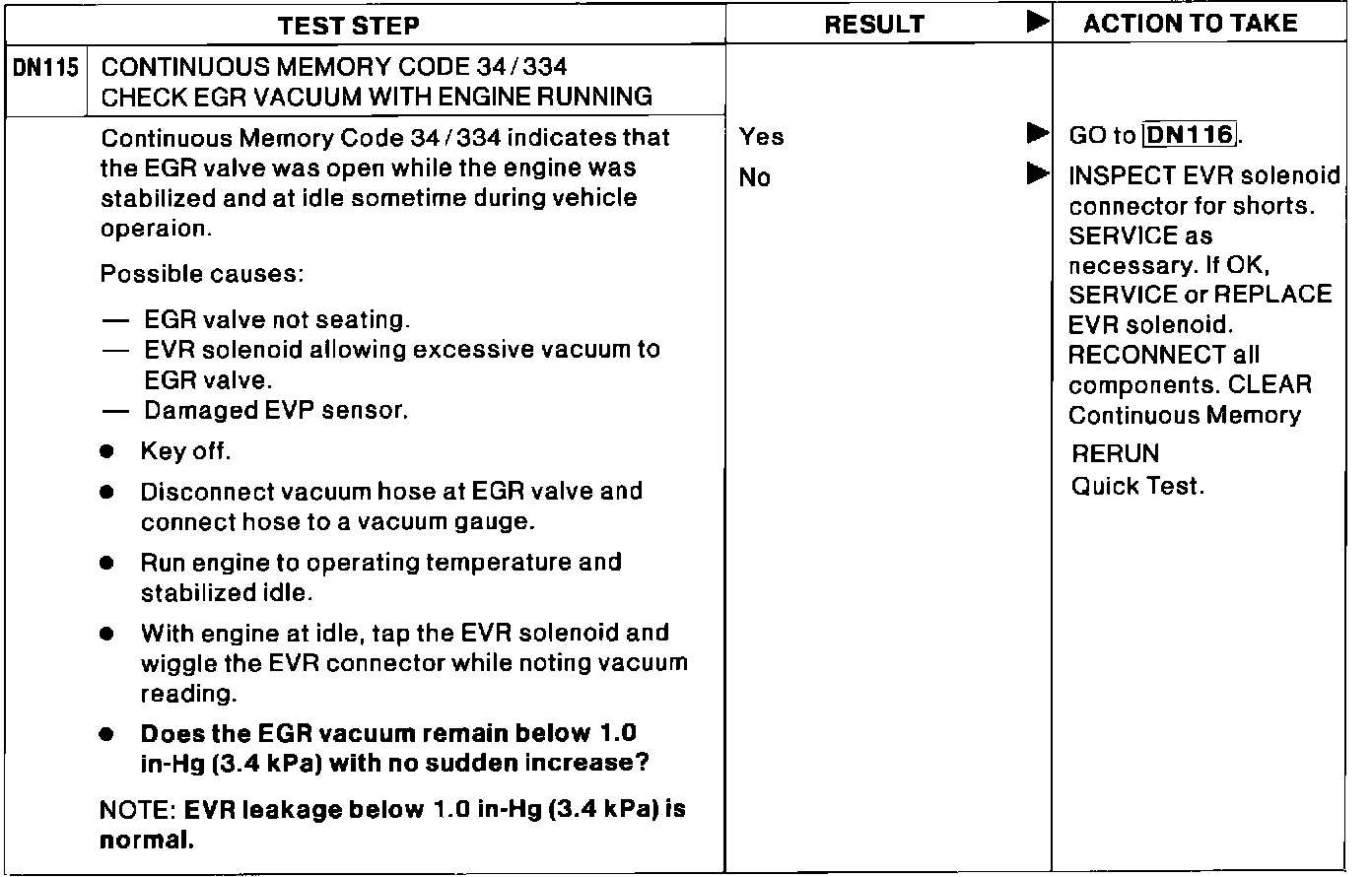

DN115 - Continuous Code 34/334: Check EGR Vacuum Running
DN115 - Continuous Code 34/334: Check EGR Vacuum Running
Pinpoint Test DN115:
