DN - EGR Valve Position Sensor/EGR Vacuum Regulator Solenoid
>>
DN112 - Check EVR Solenoid and Harness For Intermittent Fault
DN112 - Check EVR Solenoid and Harness For Intermittent Fault

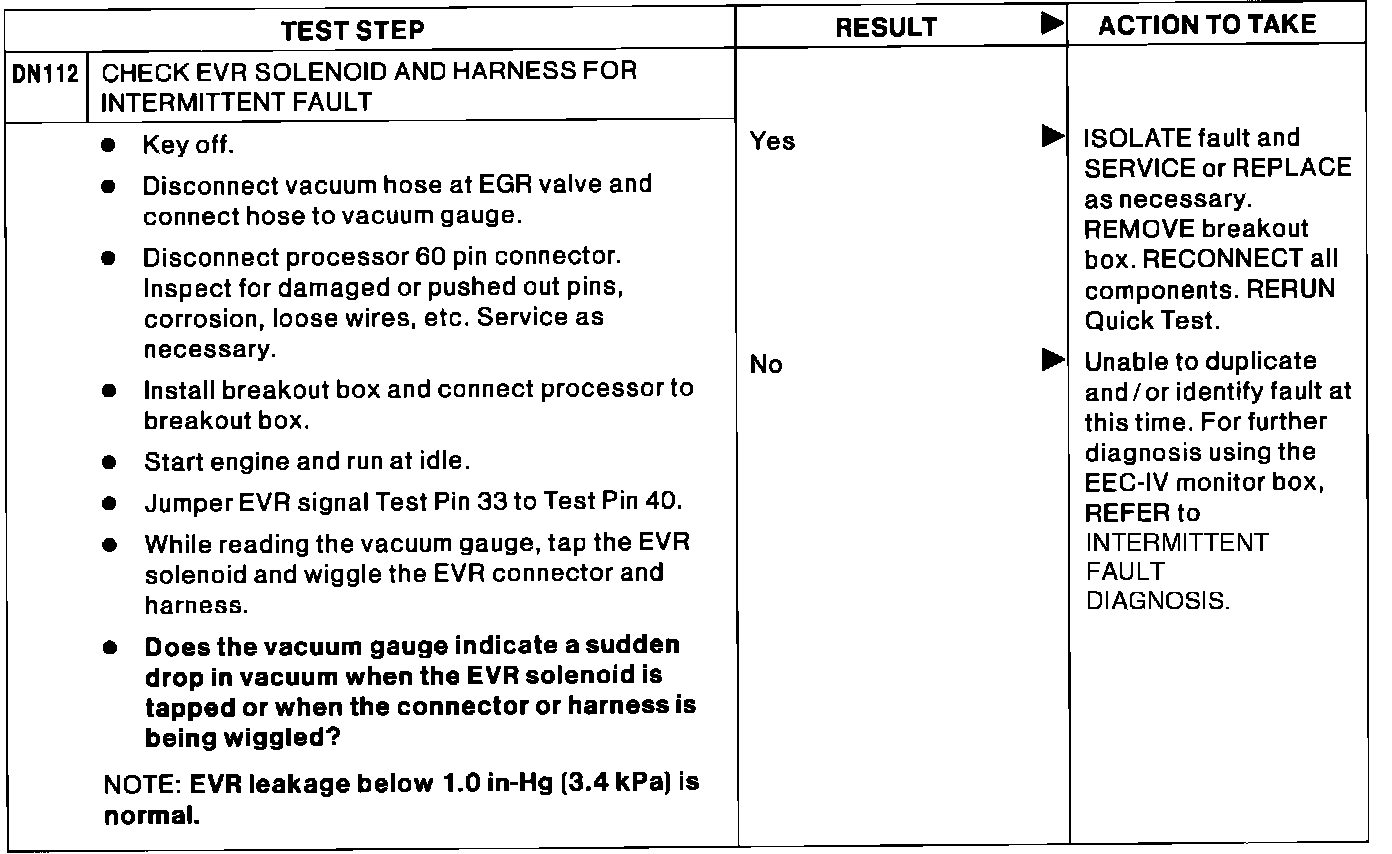

Pinpoint Test DN112:
