Home >> Mercury >> 1993 >> Cougar/XR7 V8-302 5.0L HO >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DN - EGR Valve Position Sensor/EGR Vacuum Regulator Solenoid >> DN110 - Continuous Codes 33/332: Check EGR Valve Function

DN110 - Continuous Codes 33/332: Check EGR Valve Function

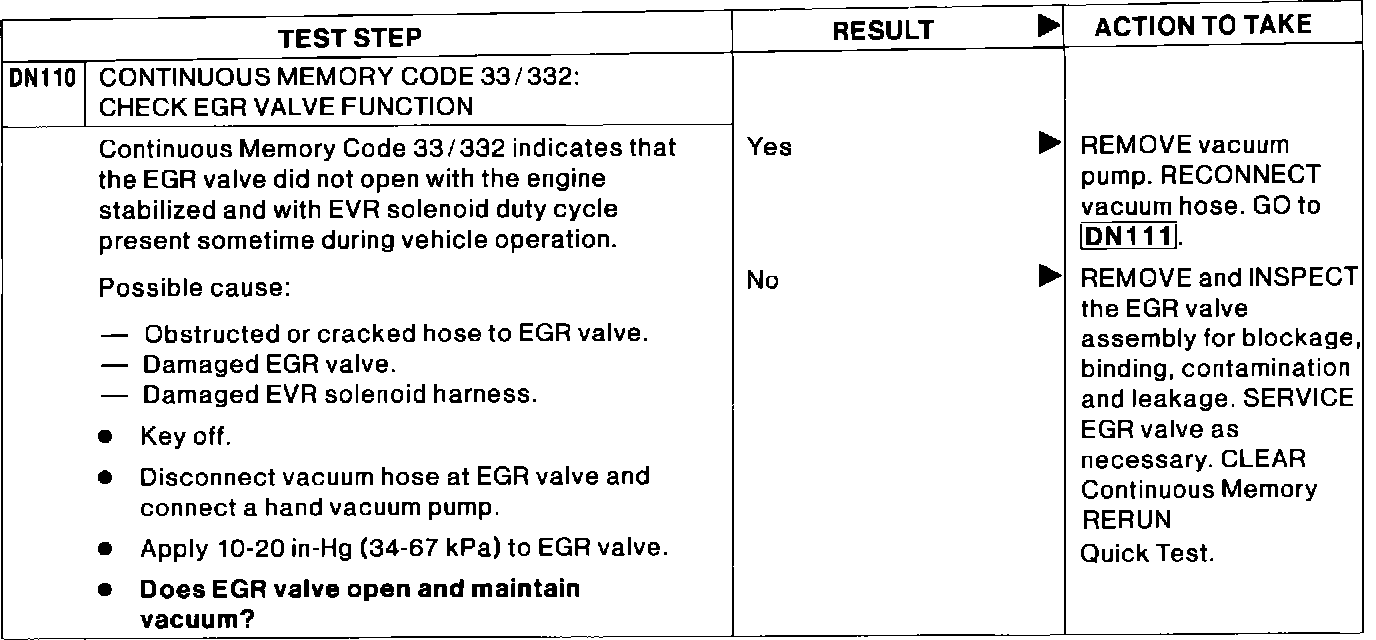

Pinpoint Test DN110:
