Instrument Cluster - Pinpoint Tests Revised

Article No.
93-19B-5

09/29/93

^ SERVICE MANUAL - 1992 - SECTION 13-01A - INSTRUMENT CLUSTER - ELECTRONIC - PINPOINT TESTS SD, FD AND FE REVISED

^ SERVICE MANUAL - 1993 - SECTION 13-01A - INSTRUMENT CLUSTER - ELECTRONIC - PINPOINT TESTS SD, FD AND FE REVISED

FORD:
1992-93 THUNDERBIRD

LINCOLN-MERCURY:
1992-93 COUGAR

ISSUE:
Instrument Cluster-Electronic Pinpoint Tests SD, FD and FE require revision and/or additional information. 1992 and 1993 Thunderbird/Cougar Service Manuals are affected on the following pages:

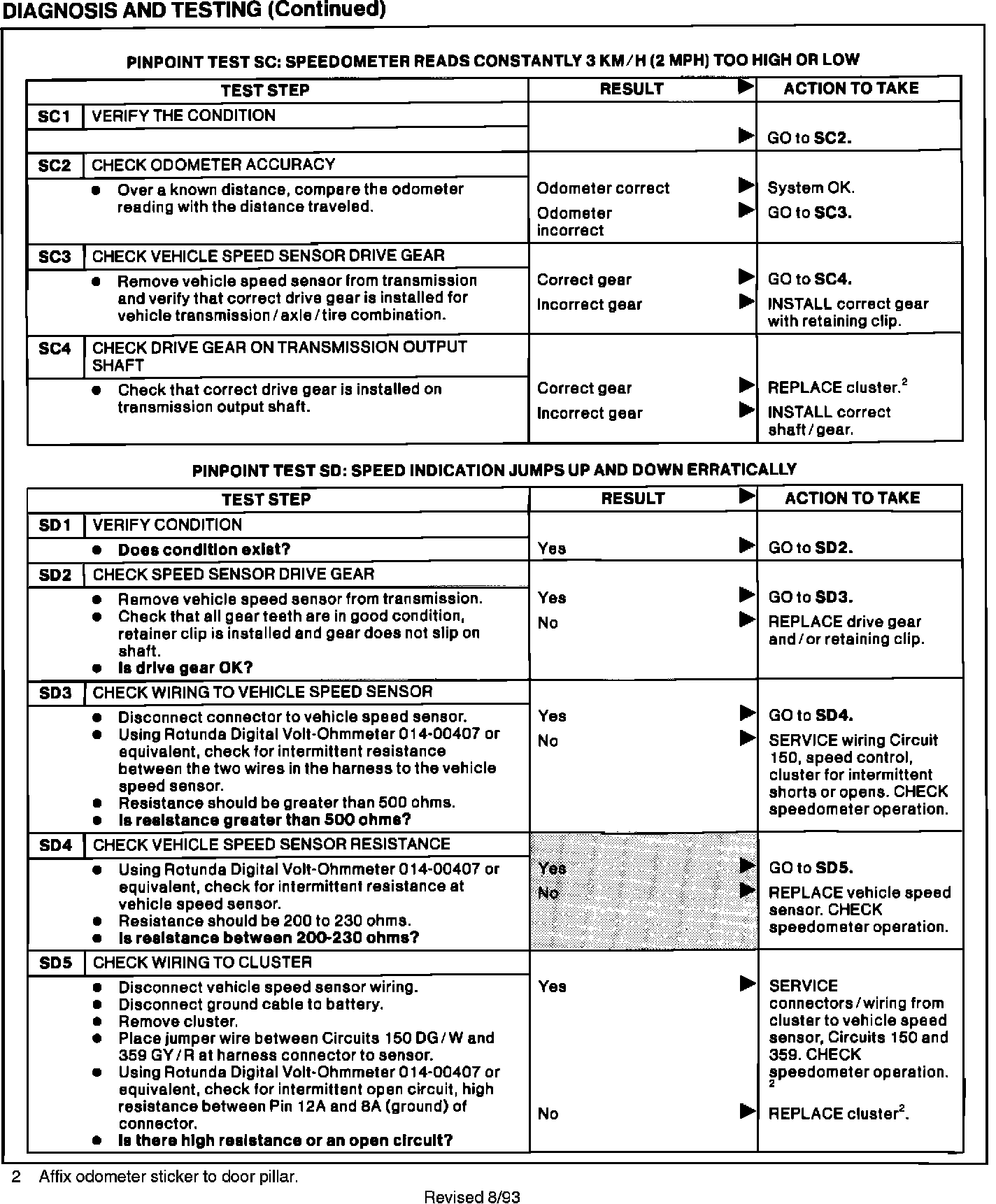

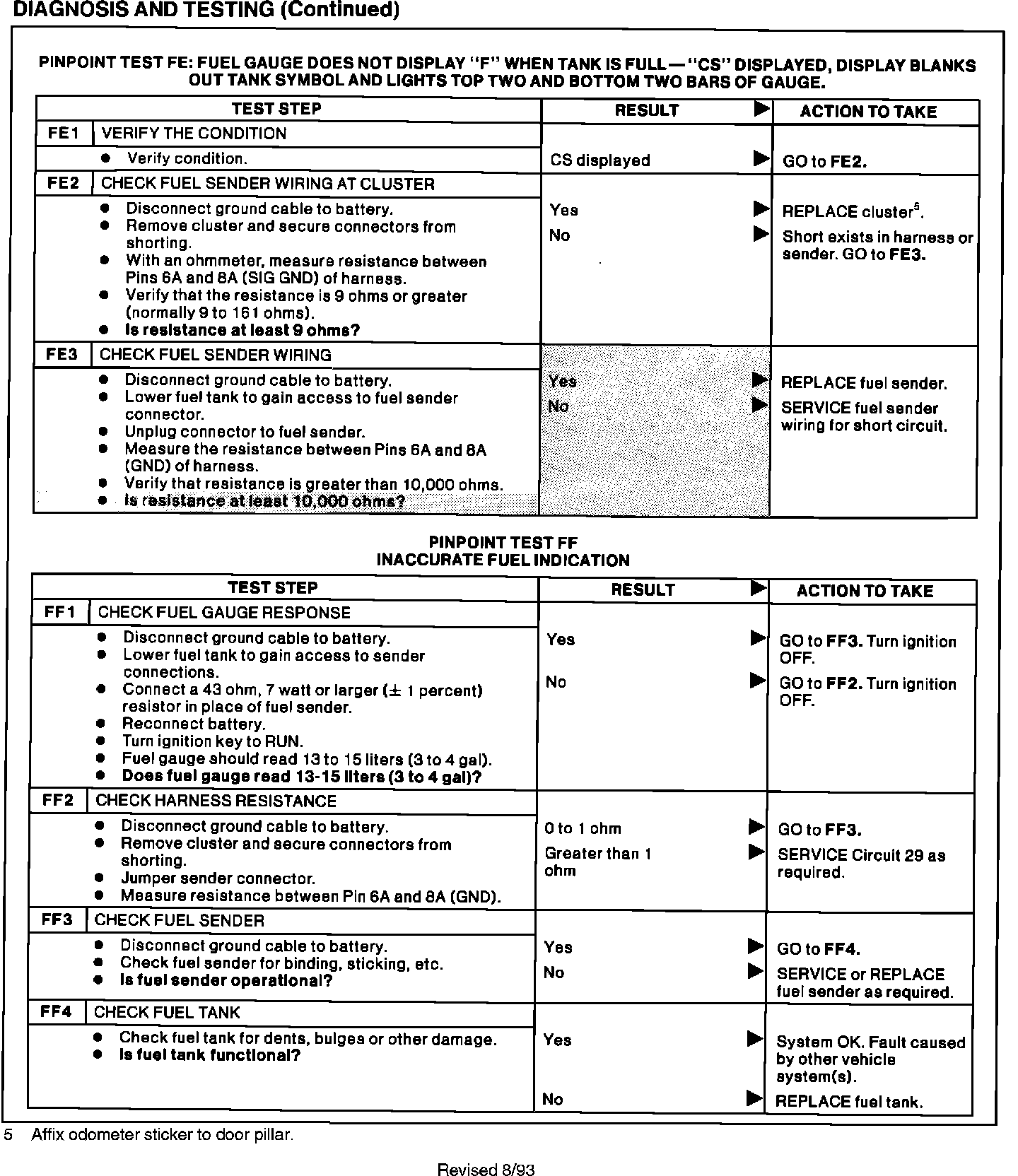

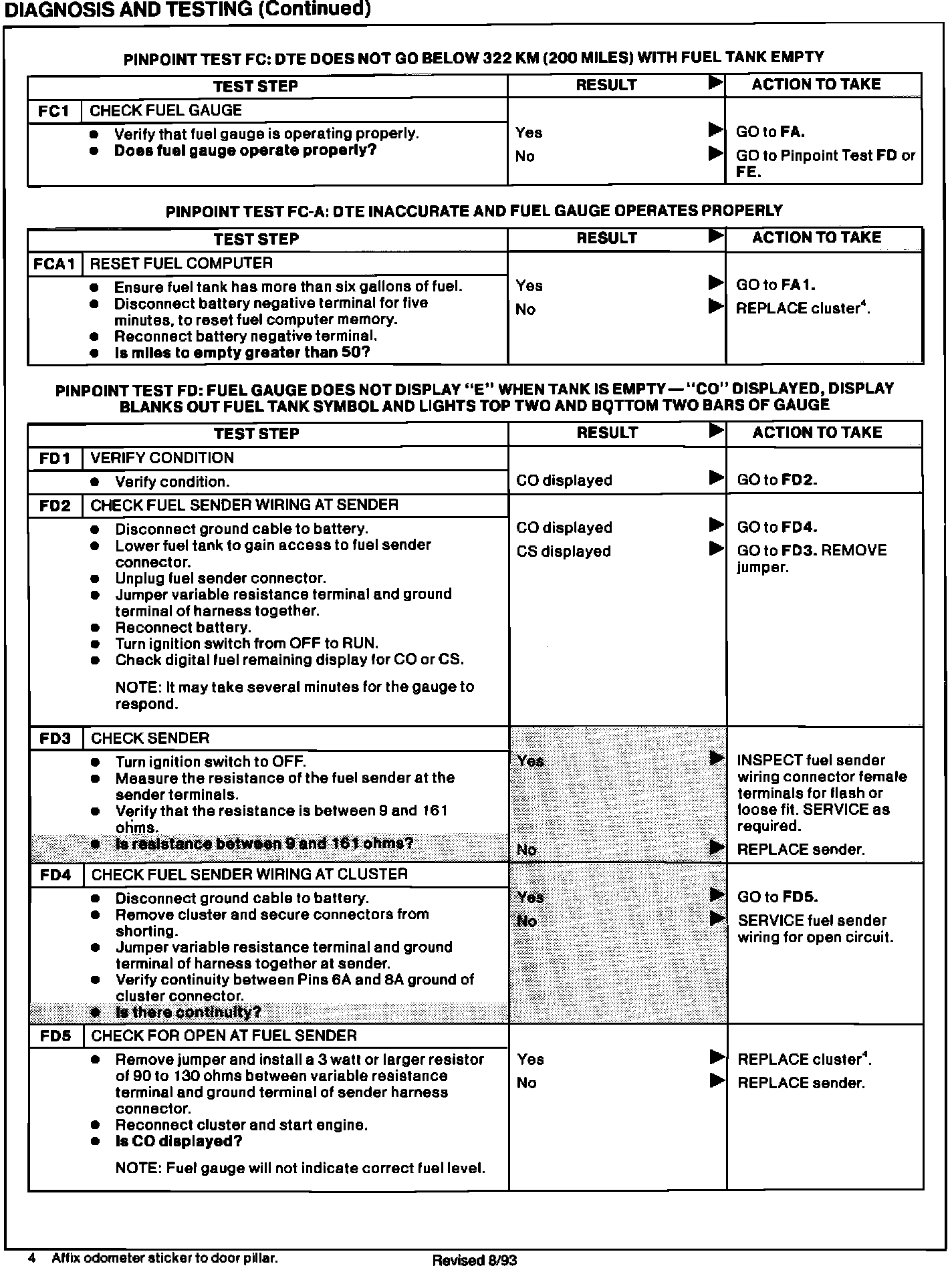

^ 1992 Thunderbird/Cougar: 13-01A-22, 13-01A-28 and 13-01A-29

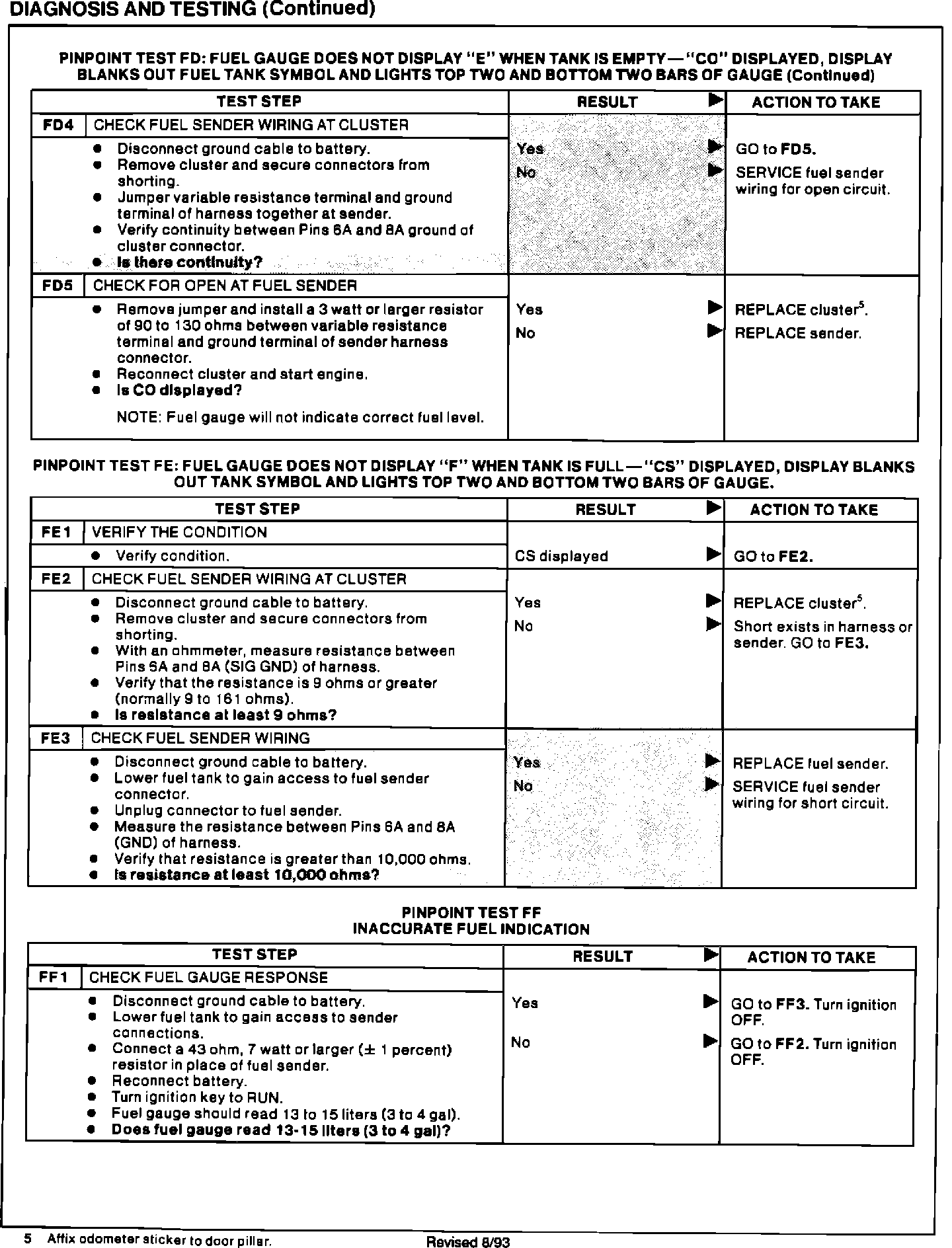

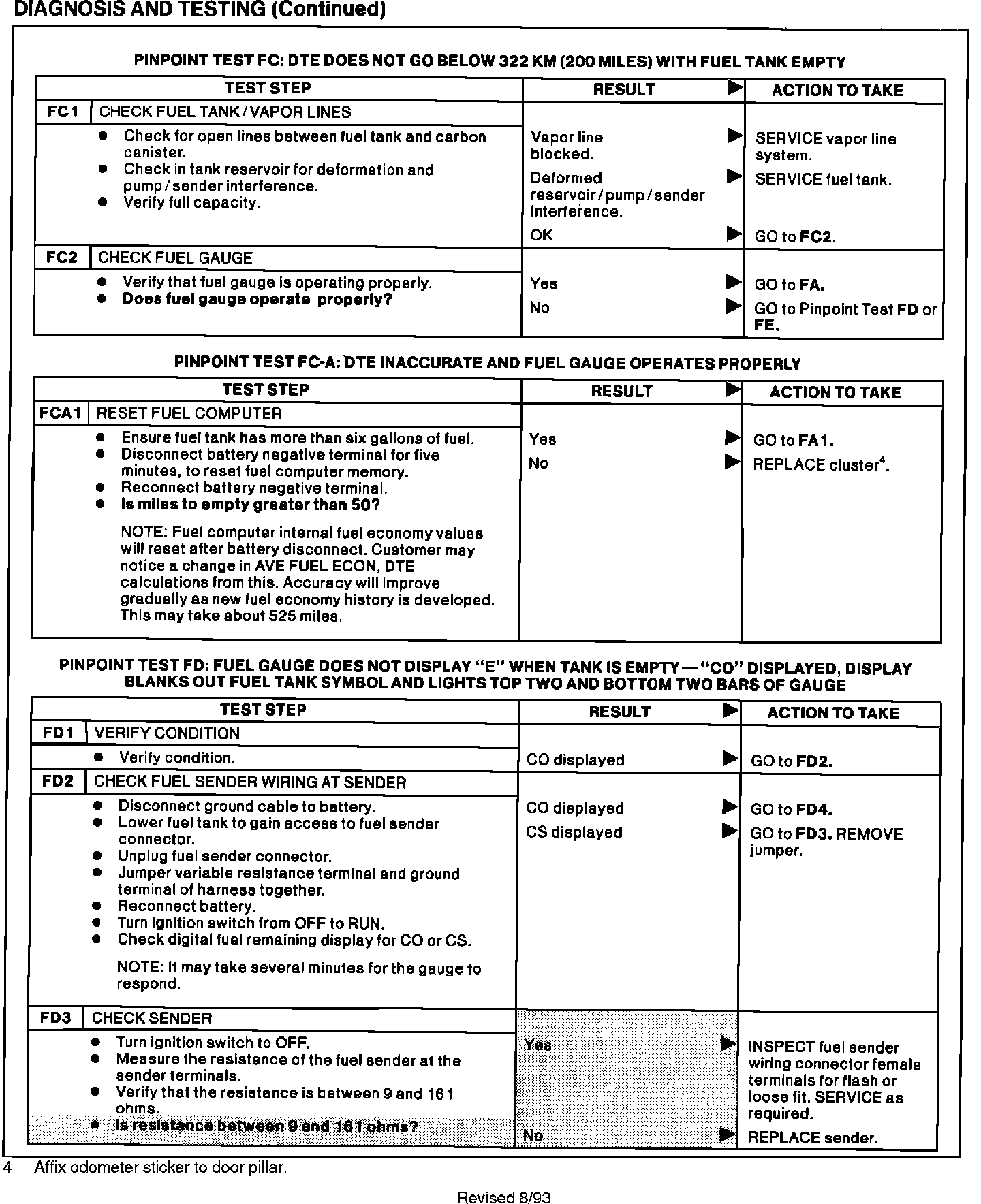

^ 1993 Thunderbird/Cougar: 13-01A-25 and 13-01A-31

ACTION:
Refer to the pages in this TSB article for the revised information.

NOTE:

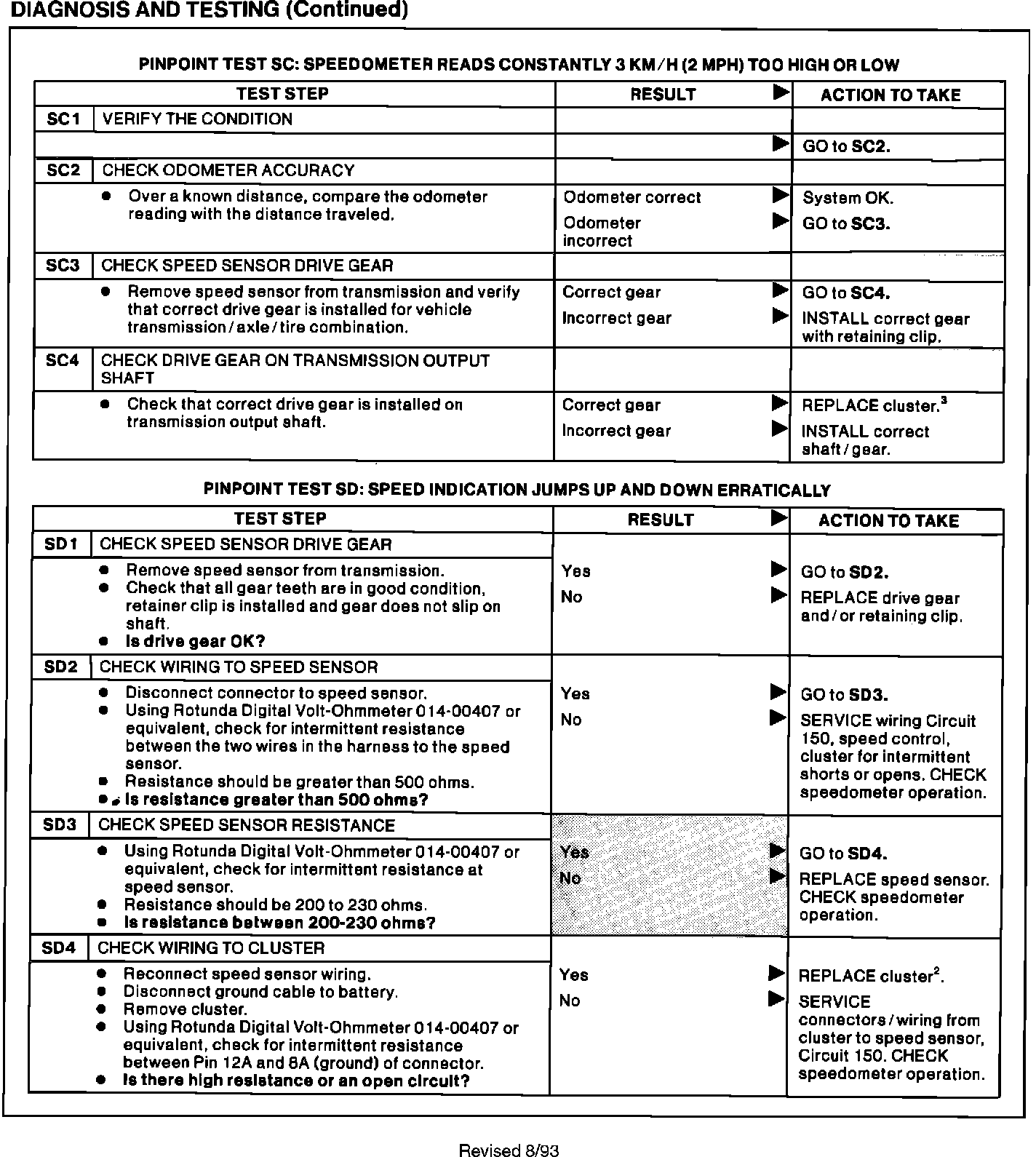

1992 THUNDERBIRD/COUGAR PINPOINT TEST SD HAS BEEN CONSOLIDATED AND REVISED. THE REVISED TEST ENDS WITH STEP SD4.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000
