Home >> Mercury >> 1993 >> Cougar/XR7 V8-302 5.0L HO >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> BB Solenoid Valve Diagnosis >> BB7 to BB9

BB7 to BB9

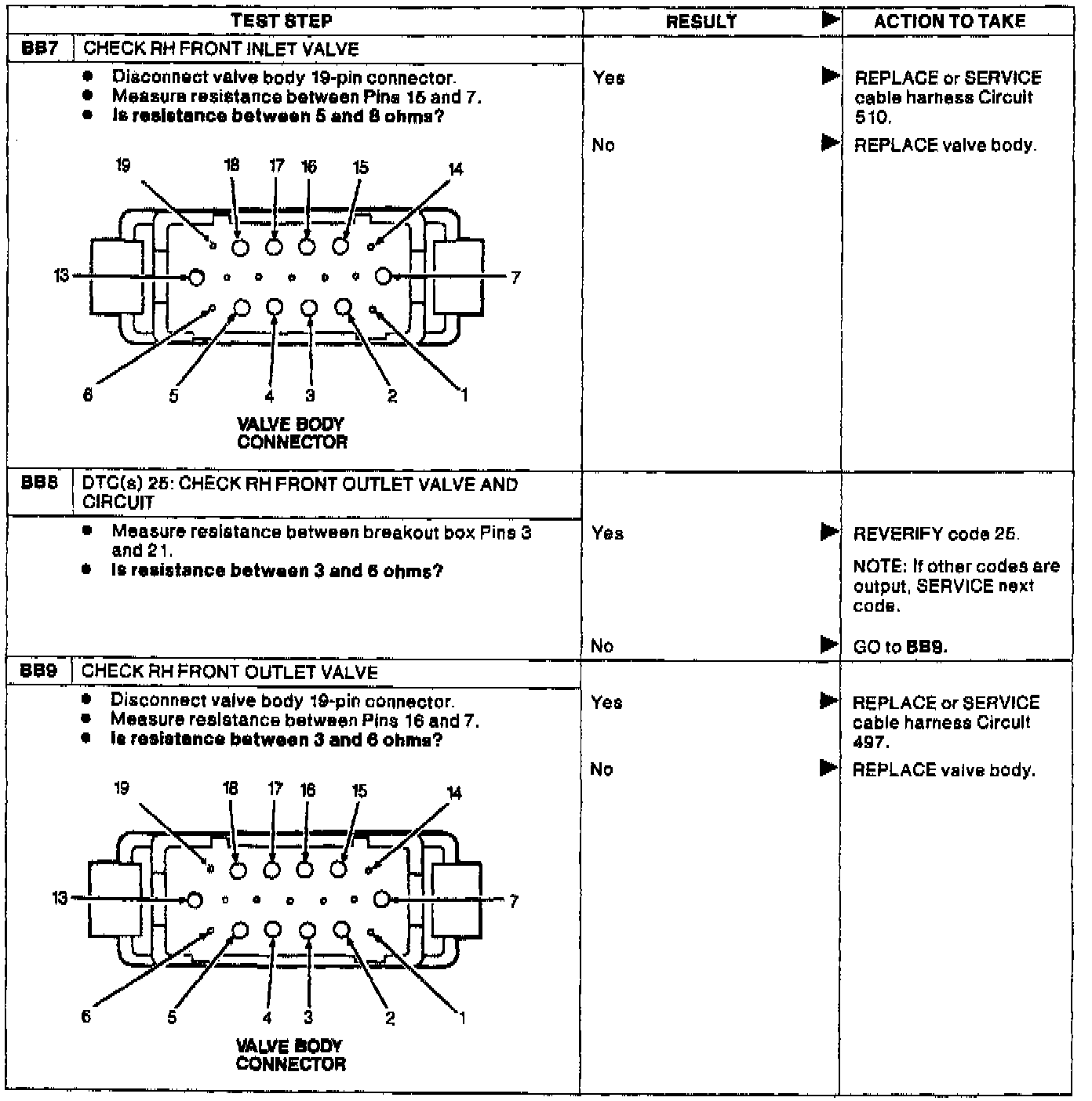

Test BB, Solenoid Valve & Isolation Valve Diagnosis (Part 3 Of 7):
