Home >> Mercury >> 1993 >> Cougar/XR7 V8-302 5.0L HO >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> BB Solenoid Valve Diagnosis >> BB10 to BB12

BB10 to BB12

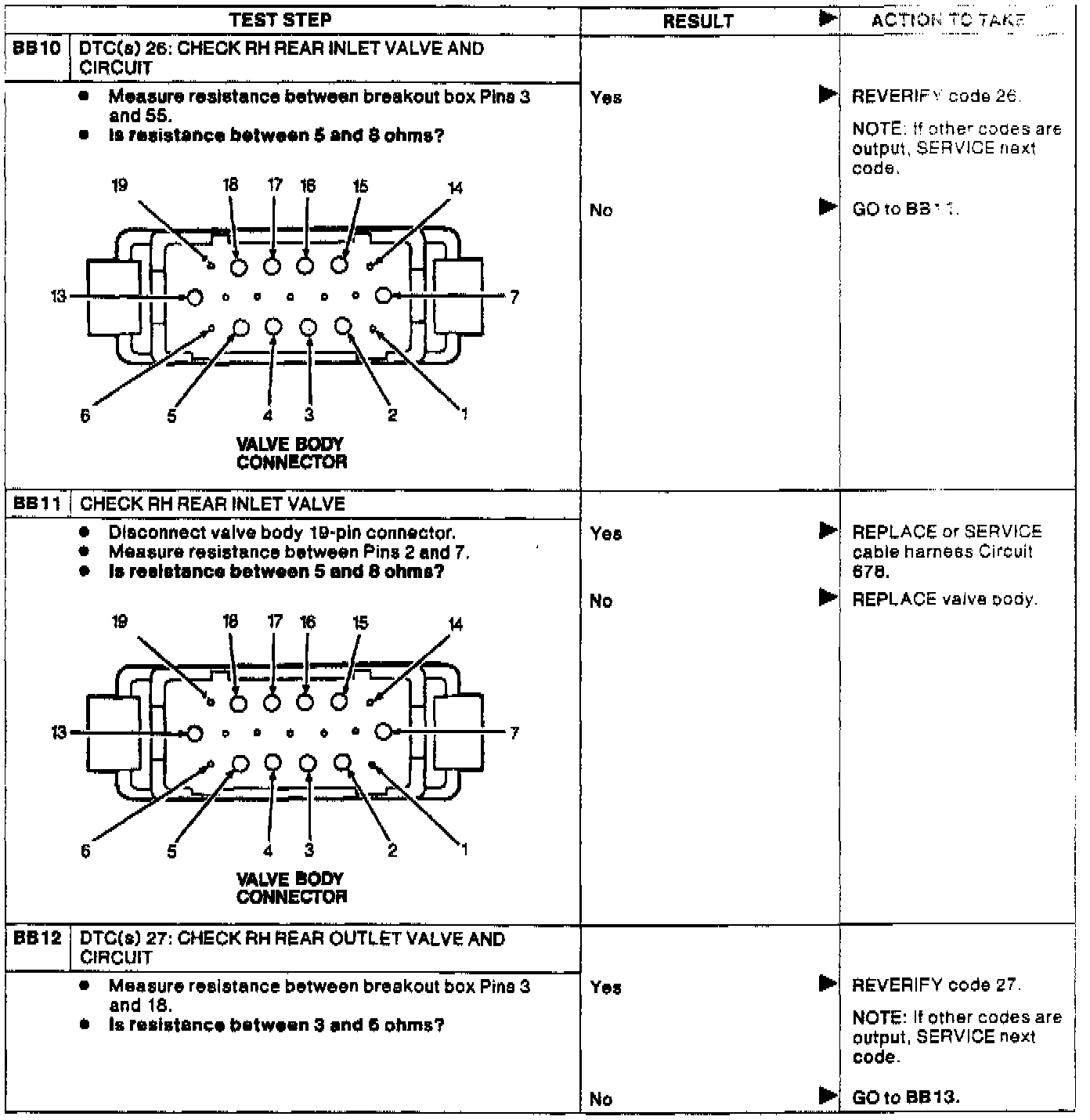

Test BB, Solenoid Valve & Isolation Valve Diagnosis (Part 4 Of 7):
