Test H1 - H3
Test H1 - H3

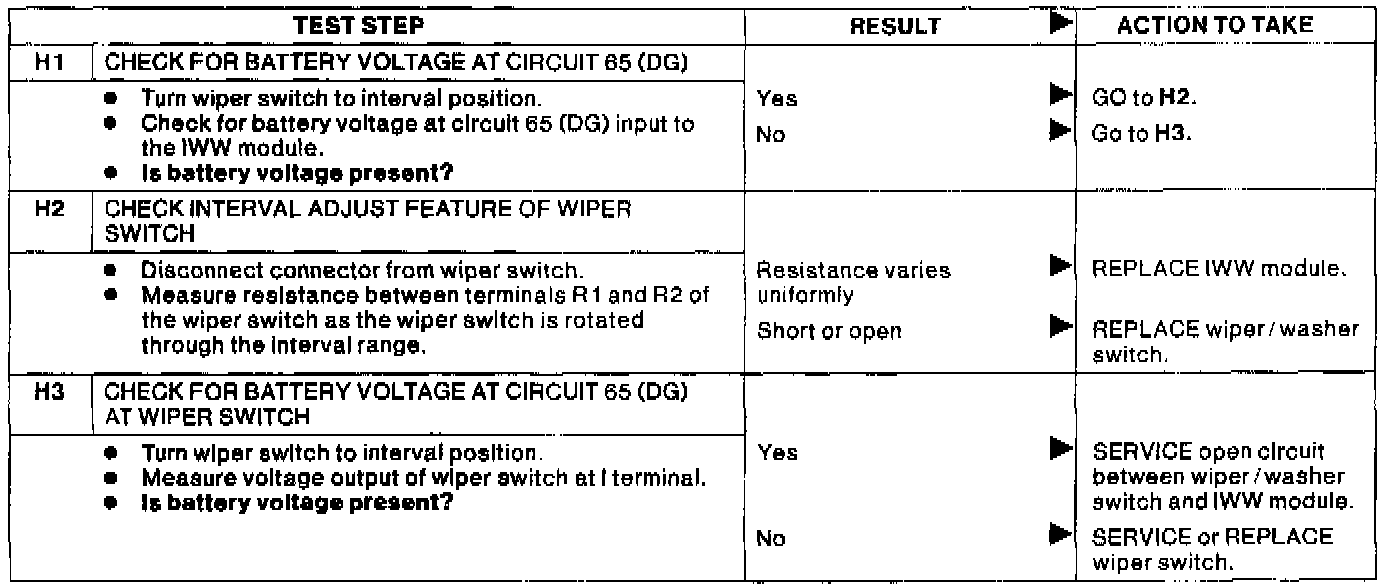

Fig. 40 Diagnostic Pinpoint Test H, Wipers Inoperative On Interval (Low Or High Speed Works). Thunderbird/Cougar, Mustang, Tempo/Topaz:
