Test A1

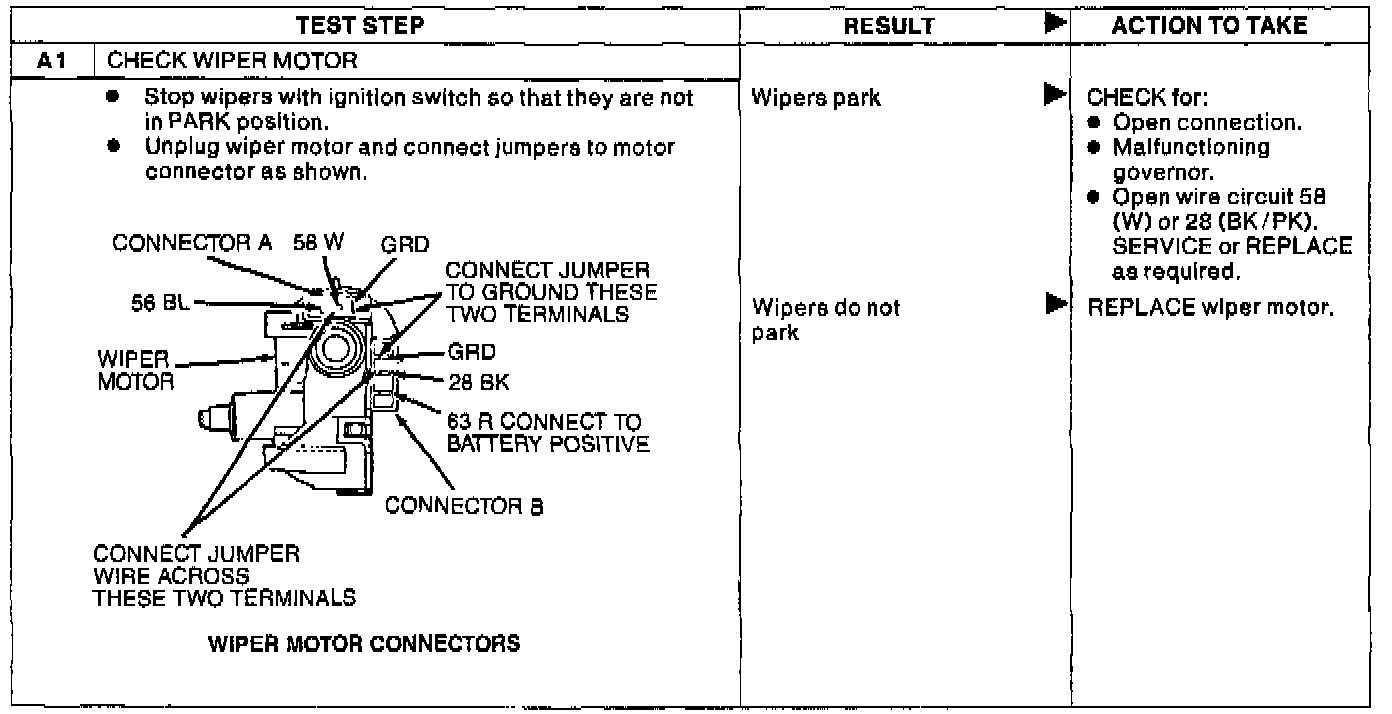

Fig. 33 Diagnostic Pinpoint Test A, Wipers Will Not Park. Thunderbird/Cougar, Mustang, Tempo/Topaz:
