Planetary Gears: Service and Repair

DISASSEMBLY

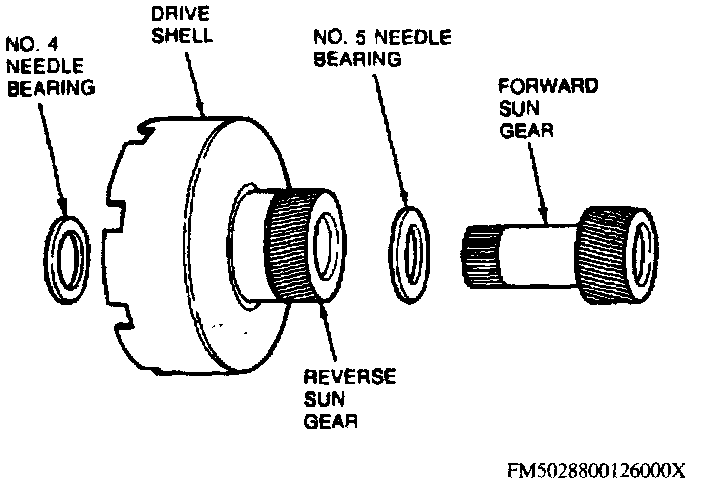

Exploded View Of Sun Gear & Drive Shell:

1. Remove No. 4 needle bearing from drive shell.
2. Remove forward sun gear and No. 5 needle bearing from drive shell.
3. Remove No. 5 needle bearing from forward sun gear.

ASSEMBLY
1. The sun gear and drive shell is assembled during assembly of transmission.
