Home >> Mercury >> 1993 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> B - Actuator Control Circuit >> B16- B20

B16- B20

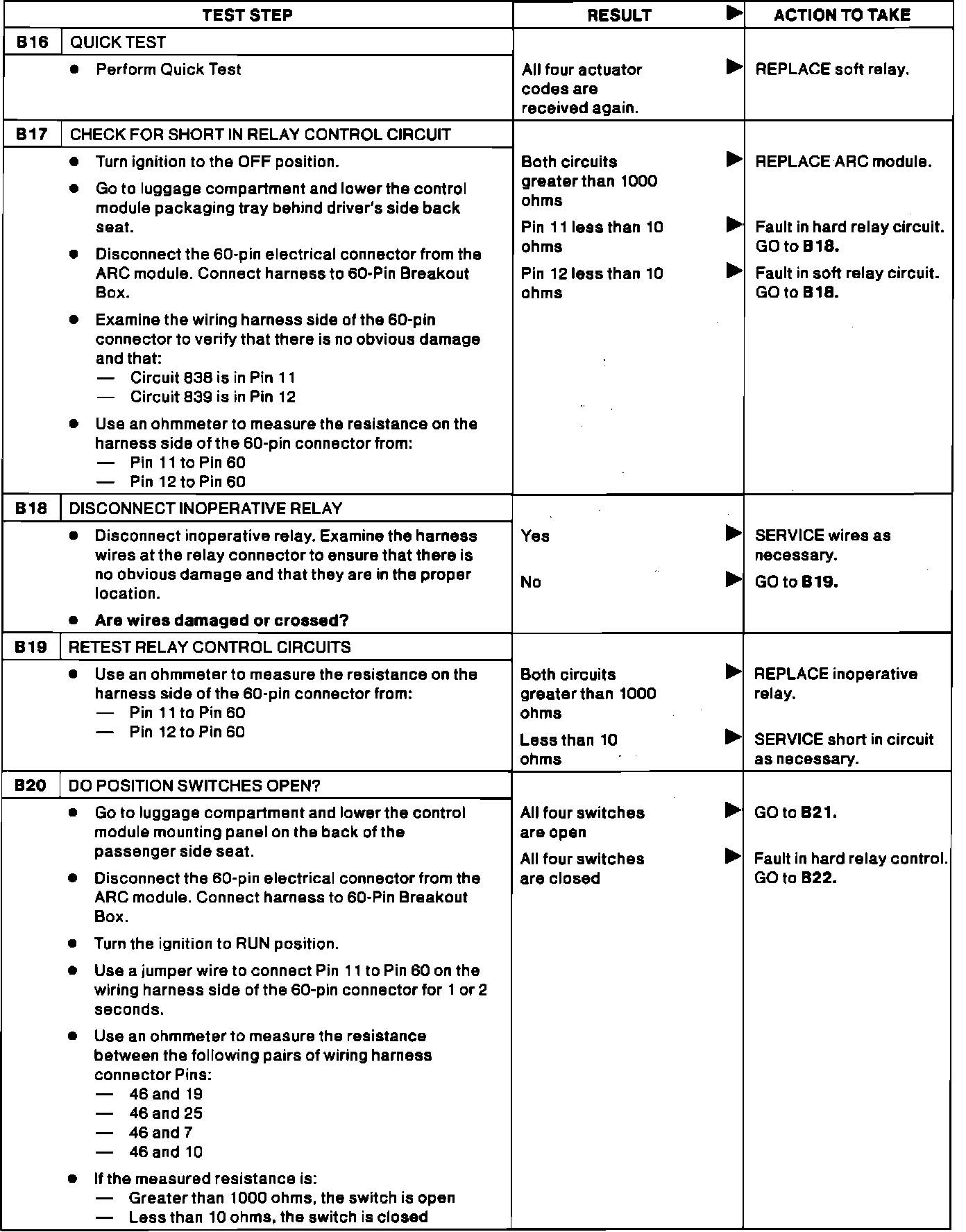

Test B16 - B20 Actuator Control Circuit Diagnosis:
