Home >> Mercury >> 1993 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Electronic Variable Orifice System >> Diagnostic Charts >> A3 - A5

A3 - A5

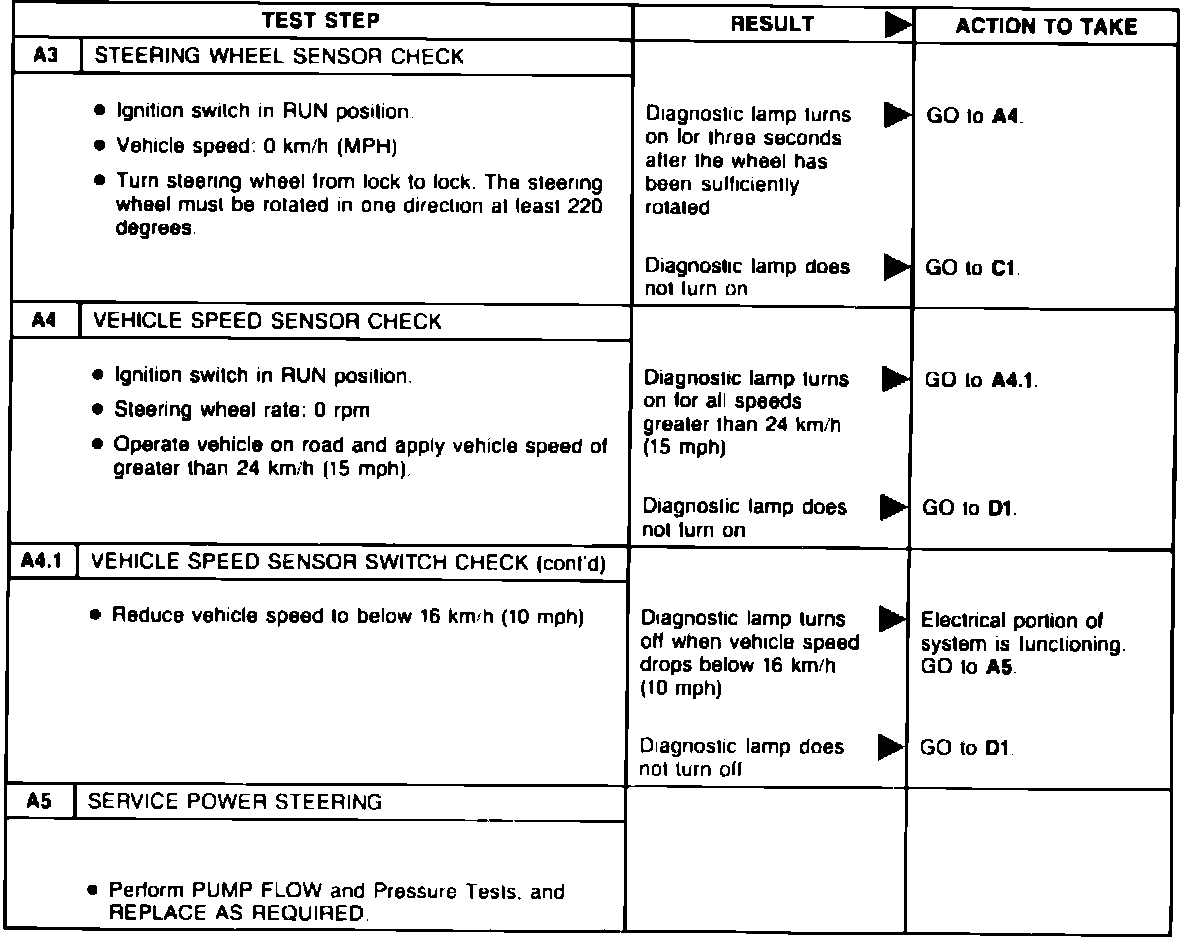

Fig. 7 System Testing (Part 2 Of 8):
