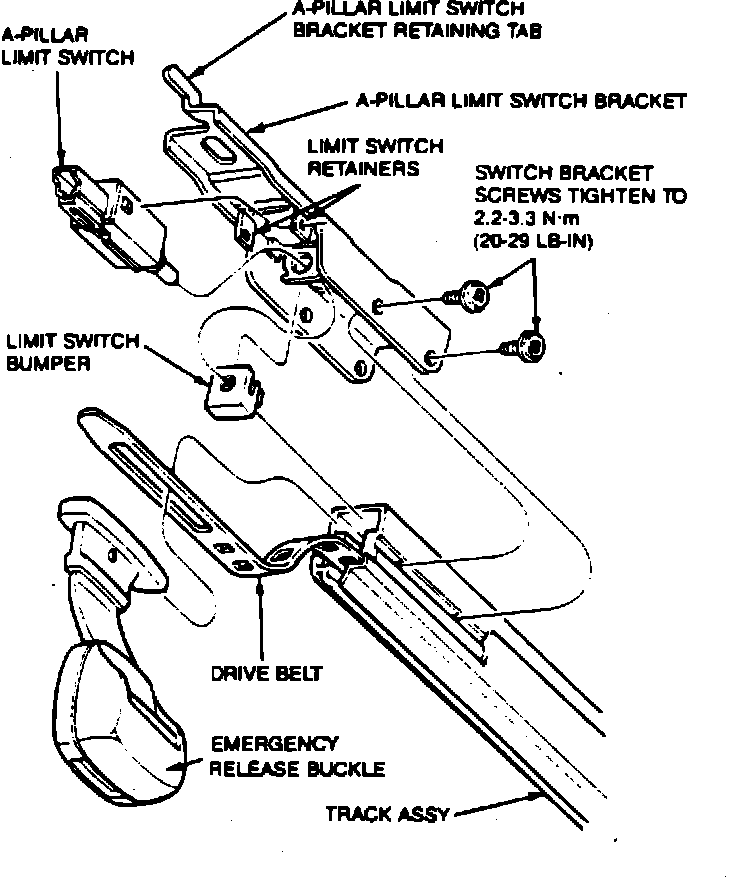

Seat Belt Retractor Limit Switch: Locations

RH Front Limit Switch
The connector for the RH front limit switch D is part of the 14A380 wiring assembly. The switch is located in the RH A-pillar. The circuits are connected to the 14401 wiring assembly in the RH cowl area by a 2-pin connector.

LH Front Limit Switch
The connector for the LH front limit switch E is part of the 14334 wiring assembly. It is located in the LH A-pillar. The circuits are connected to the 14401 wiring assembly at the fuse panel bracket by an 8-pin connector.
