Home >> Mercury >> 1993 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Testing and Inspection >> Pinpoint Tests >> Test J: Passive Restraint Module Check

Test J: Passive Restraint Module Check

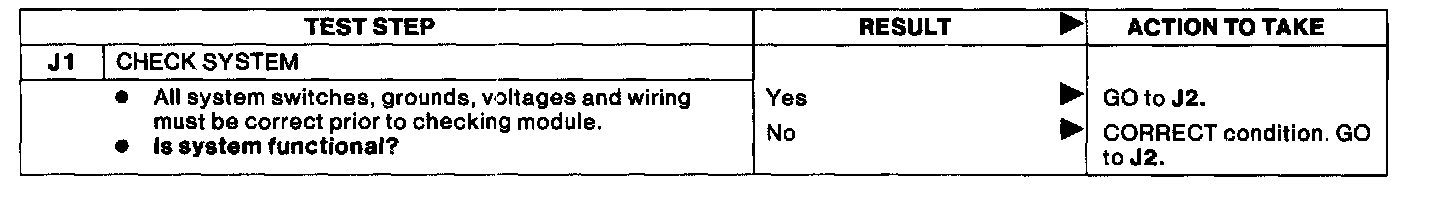

J1:

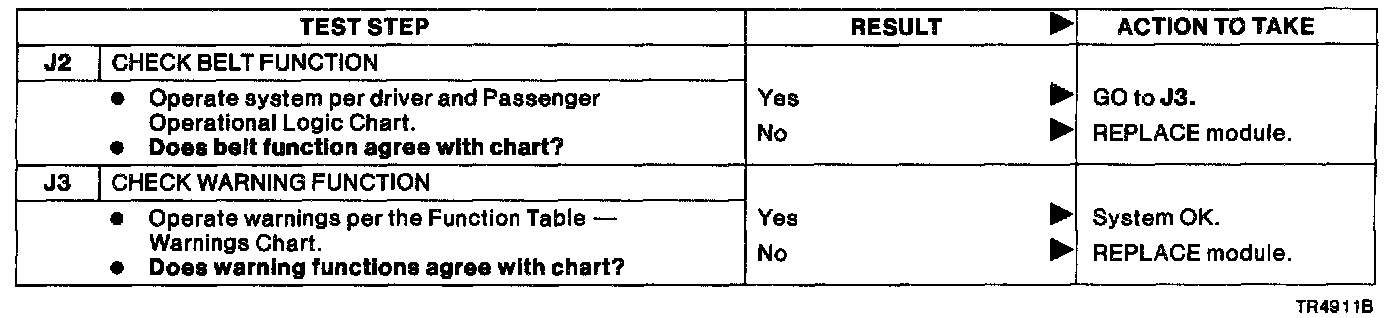

J2 - J3:
