Mercury
>>
1993
>>
Cougar/XR7 V6-232 3.8L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Operational Logic Chart
Operational Logic Chart

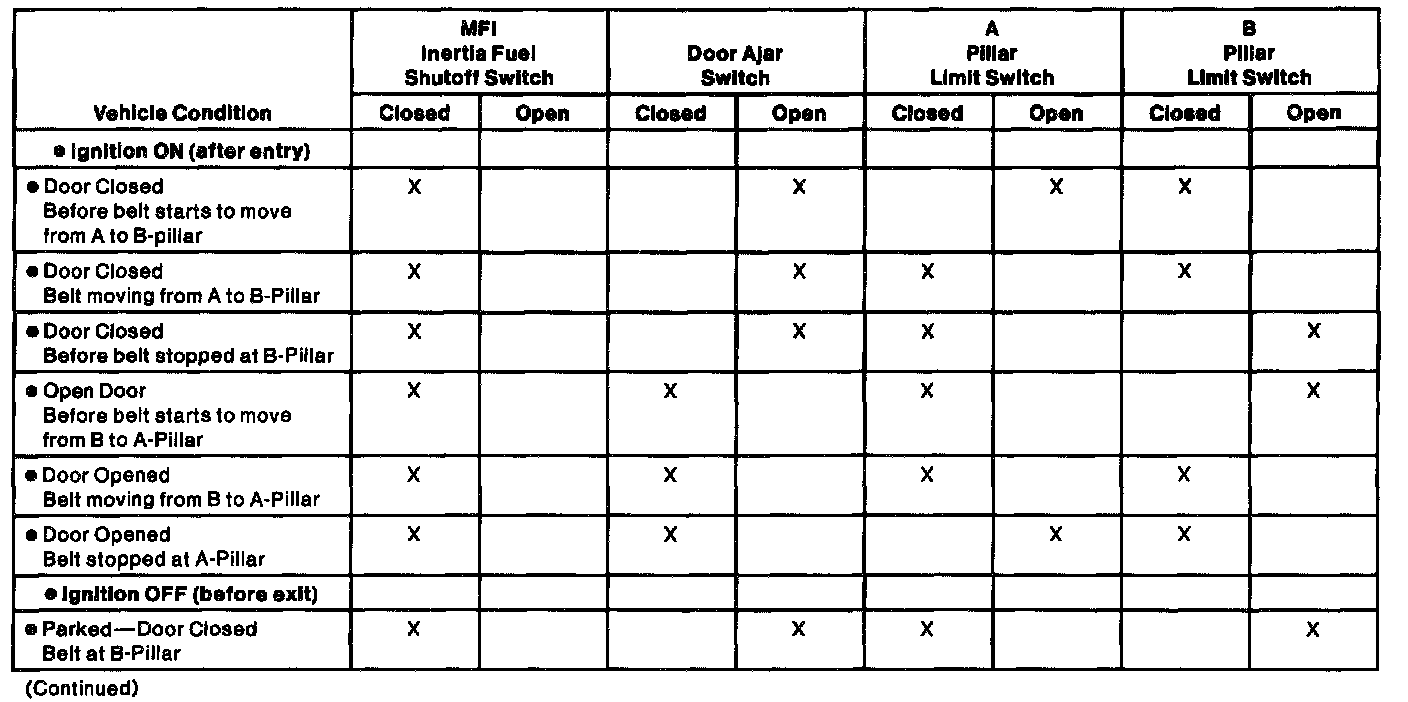

Driver And Passenger Operational Logic Chart (Part 1 Of 2):

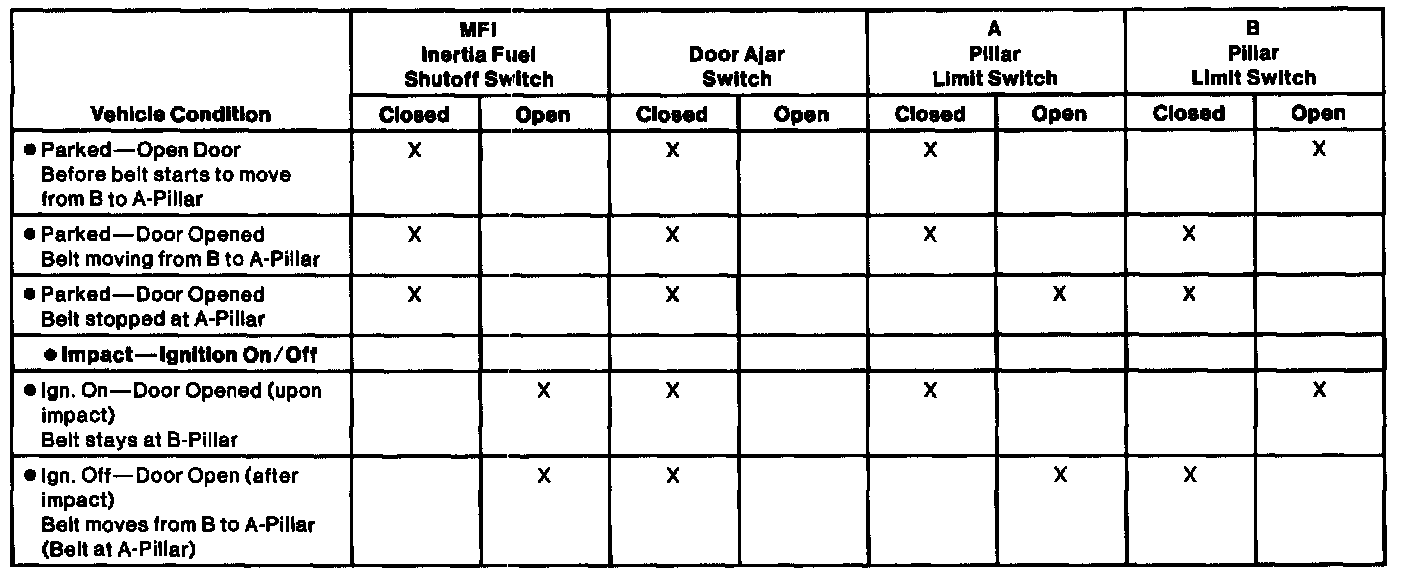

Driver And Passenger Operational Logic Chart (Part 2 Of 2):
