Shoulder Belt Retractor Switch

REMOVAL and INSTALLATION

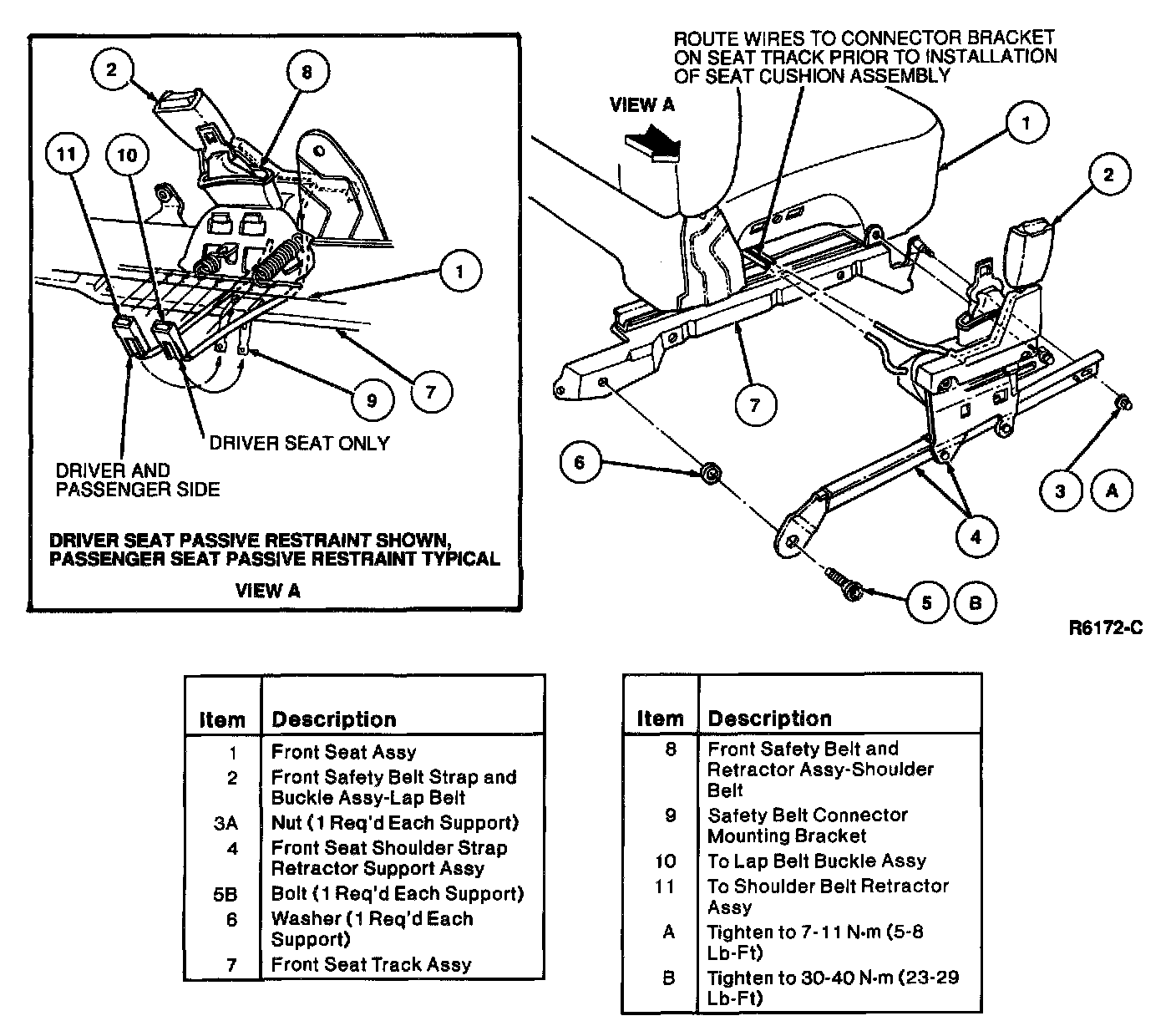

1. Disconnect switch at connector attached to bracket on inboard side of driver's side seat track.
2. Using an ohmmeter, such as Rotunda Digital Volt-Ohmmeter 007-00001 or equivalent, set to 200 ohms and probe across switch connector terminals.
3. Switch contacts must be closed when shoulder belt is engaged and tongue is engaged in buckle.
4. When the tongue and buckle are disengaged and the shoulder belt is retracted in excess of 500 cm (20 inches) from engaged position, switch contacts should open.
5. Repeat Steps 1 through 4 on front passenger seat shoulder belt retractor switch.
6. If switch is malfunctioning, entire retractor assembly must be replaced.
