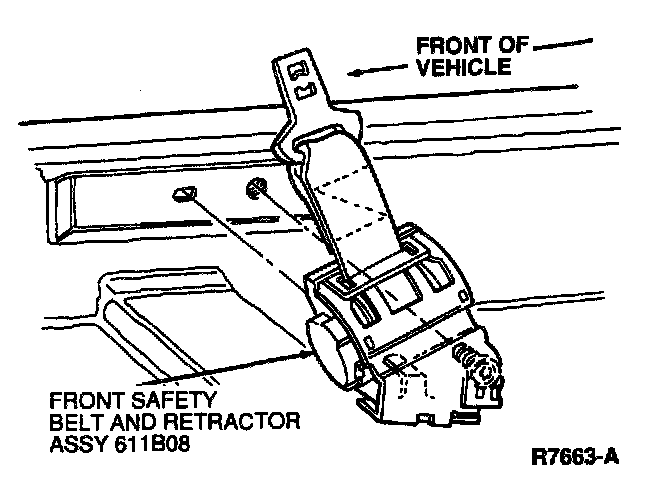

Lap Belt Retractor

REMOVAL and INSTALLATION
1. Remove scuff plate.
2. Remove bolt retaining retractor to sill.
3. Disconnect chime warning indicator lamp and remove retractor.
4. To install, reverse Removal procedure. Tighten retaining bolt to 30-40 Nm (23-29 lb-ft).
5. Cycle retractor and check for proper operation.
