Home >> Mercury >> 1993 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Pump >> Testing and Inspection >> A17 - Check Power Supply to Fuel Pump Relay

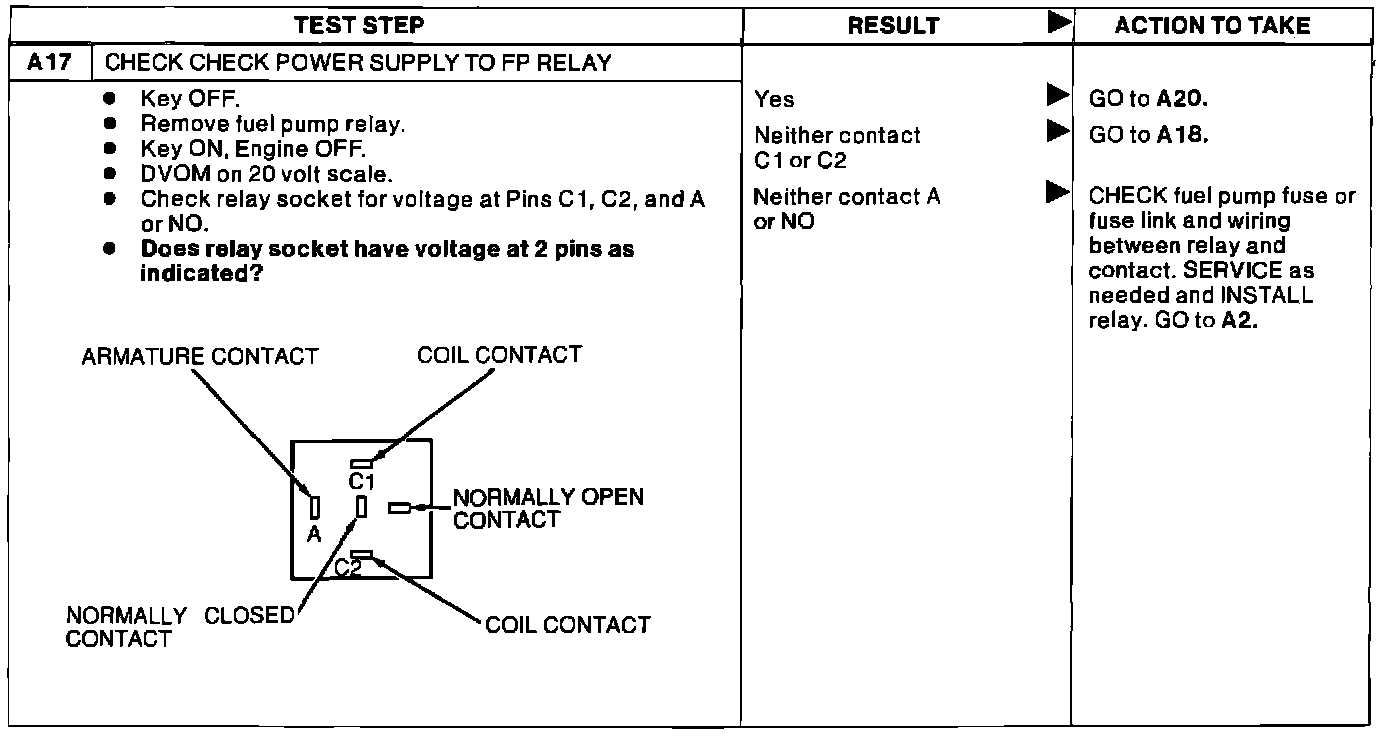

A17 - Check Power Supply to Fuel Pump Relay

A17 - Check power Supply to Fuel Pump Relay:
