DR - Cylinder Identification (CID) Sensor
>>
DR1 - Continuous Code 214: Will Engine Start
DR1 - Continuous Code 214: Will Engine Start

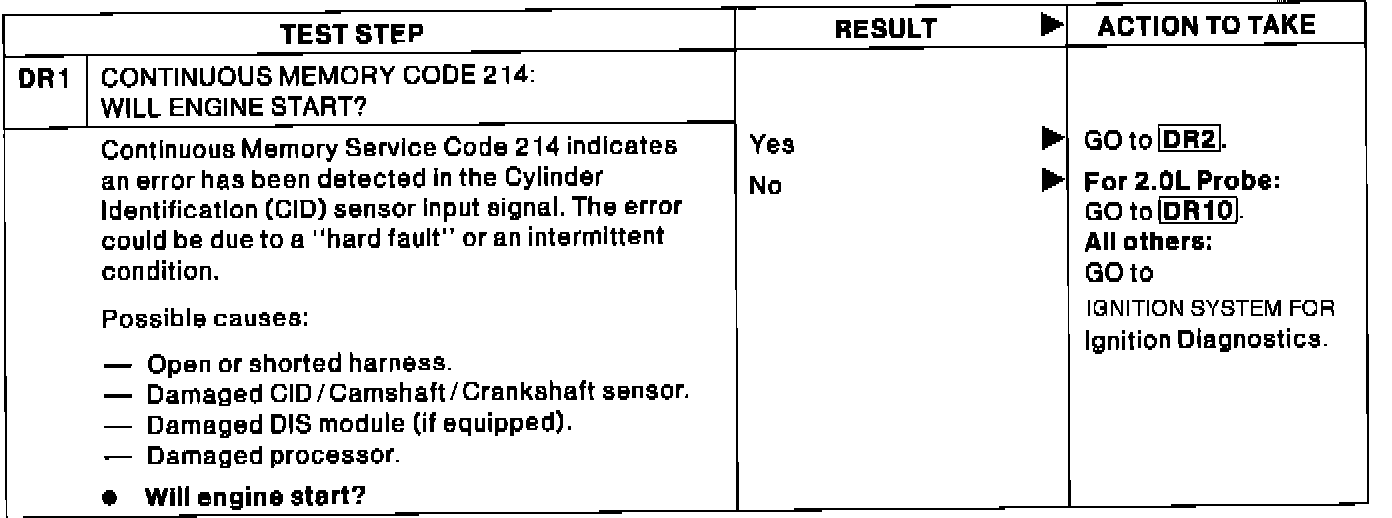

Pinpoint Test DR1:
