Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Secondary Junction Block
Secondary Junction Block

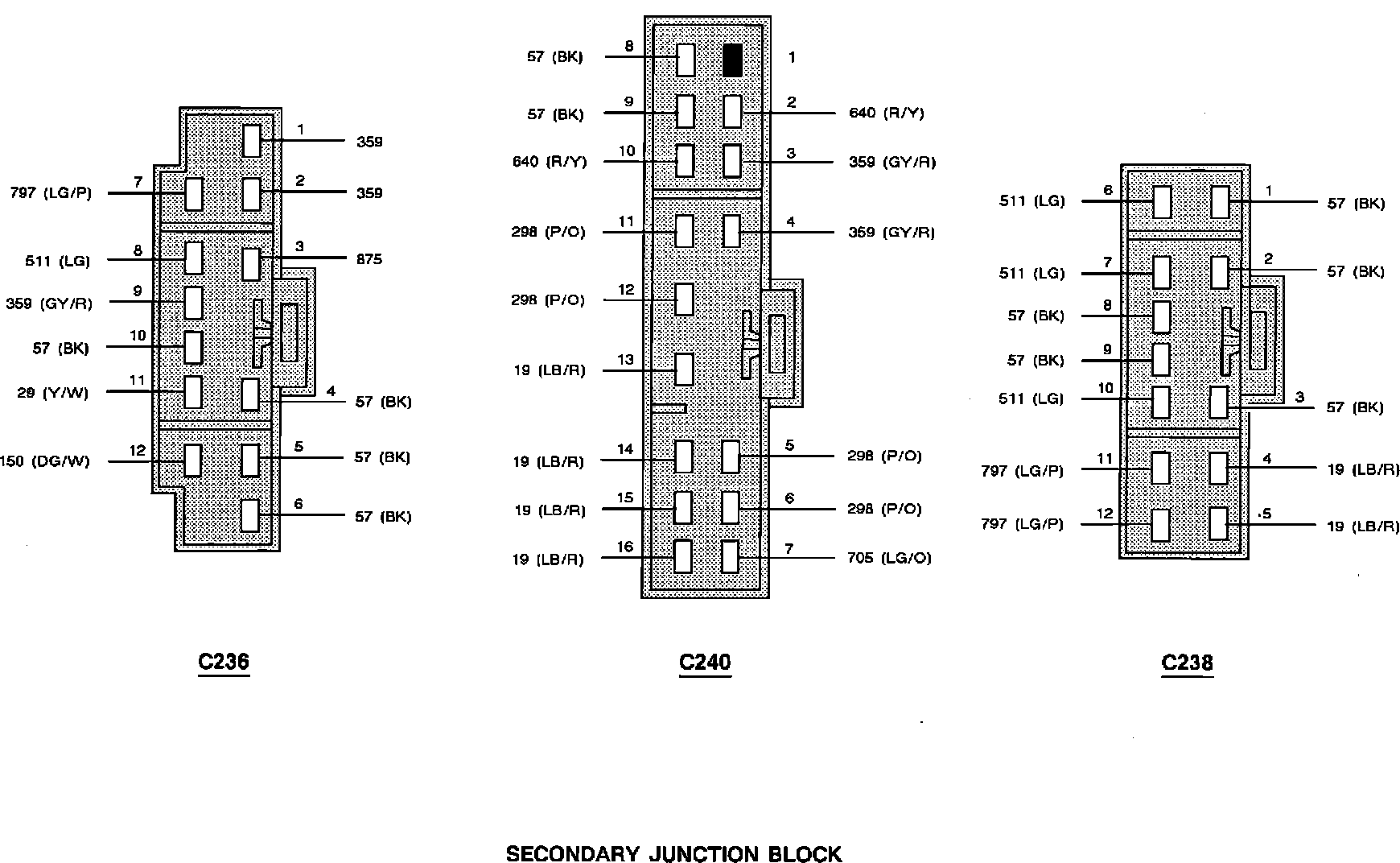

Secondary Junction Block:
Secondary Junction Block:
