Electronic Climate Control
>>
Blower Motor
>>
Blower Circuit Diagnosis

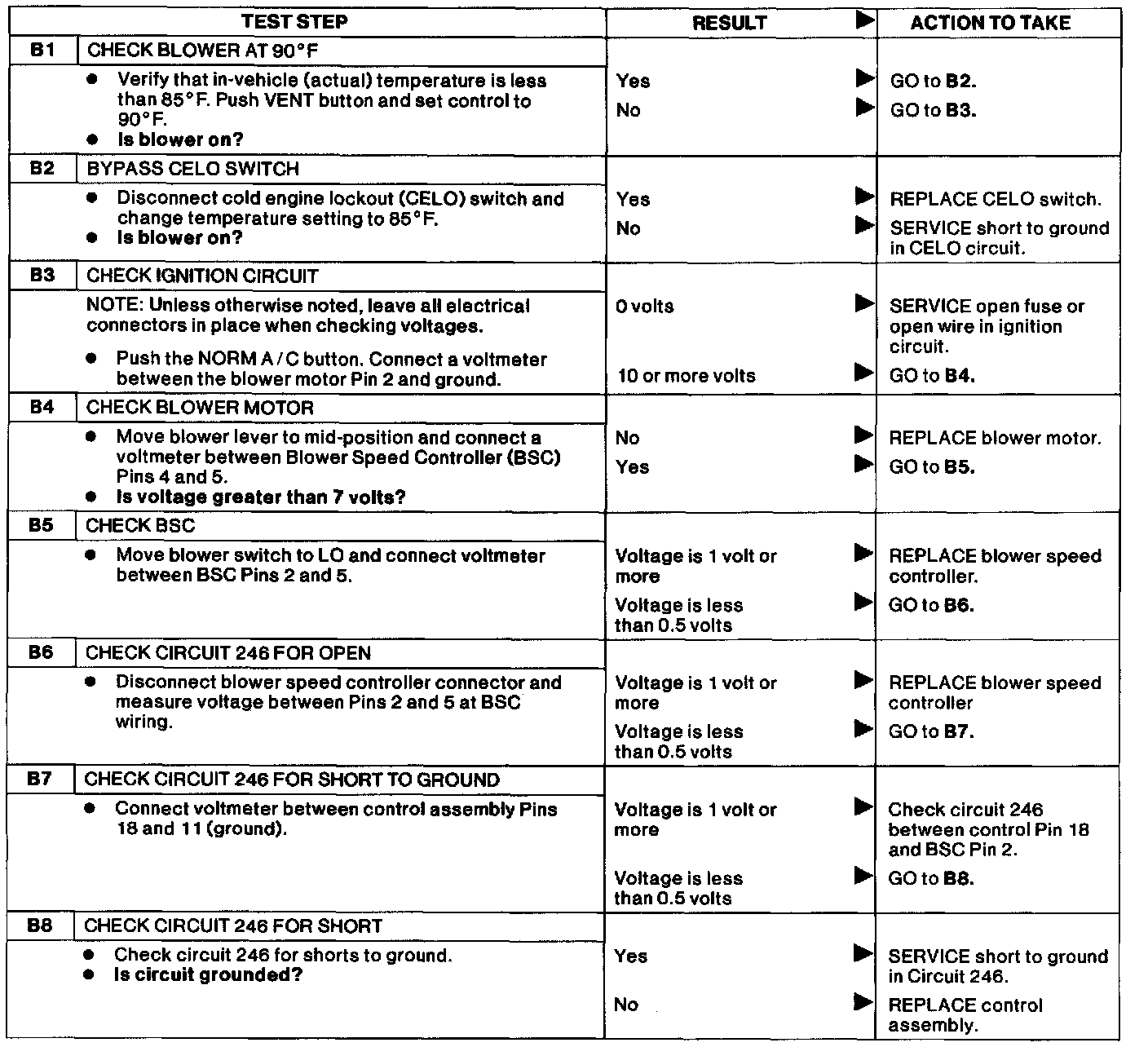

Blower Circuit Diagnosis
No blower with ignition in RUN, engine warm, AUTO blower:
No blower with ignition in RUN, engine warm, AUTO blower.
