Control Assembly: Testing and Inspection

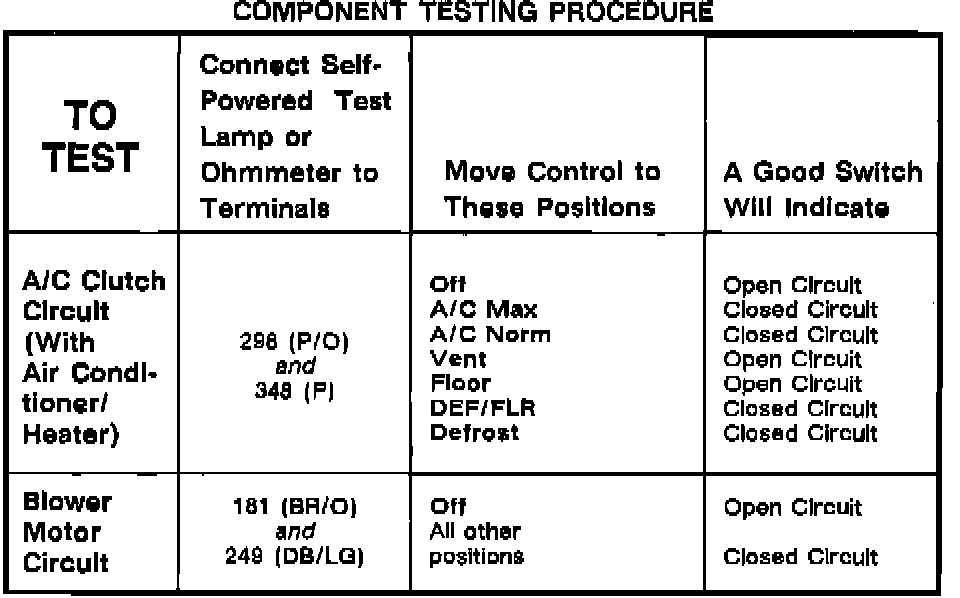

Component Testing Procedure:






COMPONENT TESTING PROCEDURE


Terminal ID, Control Assembly:






TERMINAL IDENTIFICATION


Schematic A/C Heater Control:






SCHEMATIC
