Hydraulic Assembly

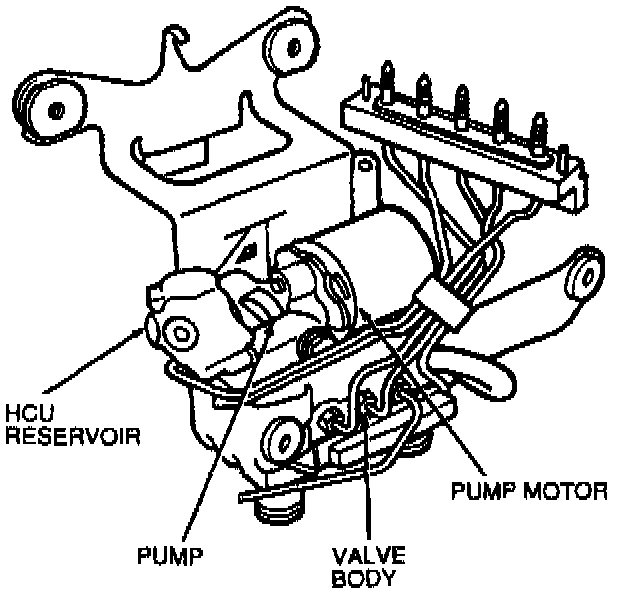

Fig. 1 Hydraulic Control Unit:
The hydraulic control unit, Fig. 1, consists of a valve body assembly, pump and motor assembly, and a brake fluid reservoir with fluid level indicator assembly.
The hydraulic control unit, Fig. 1, consists of a valve body assembly, pump and motor assembly, and a brake fluid reservoir with fluid level indicator assembly.
