J Poor Tracking During ABS Function
>>
J4 to J5
J4 to J5

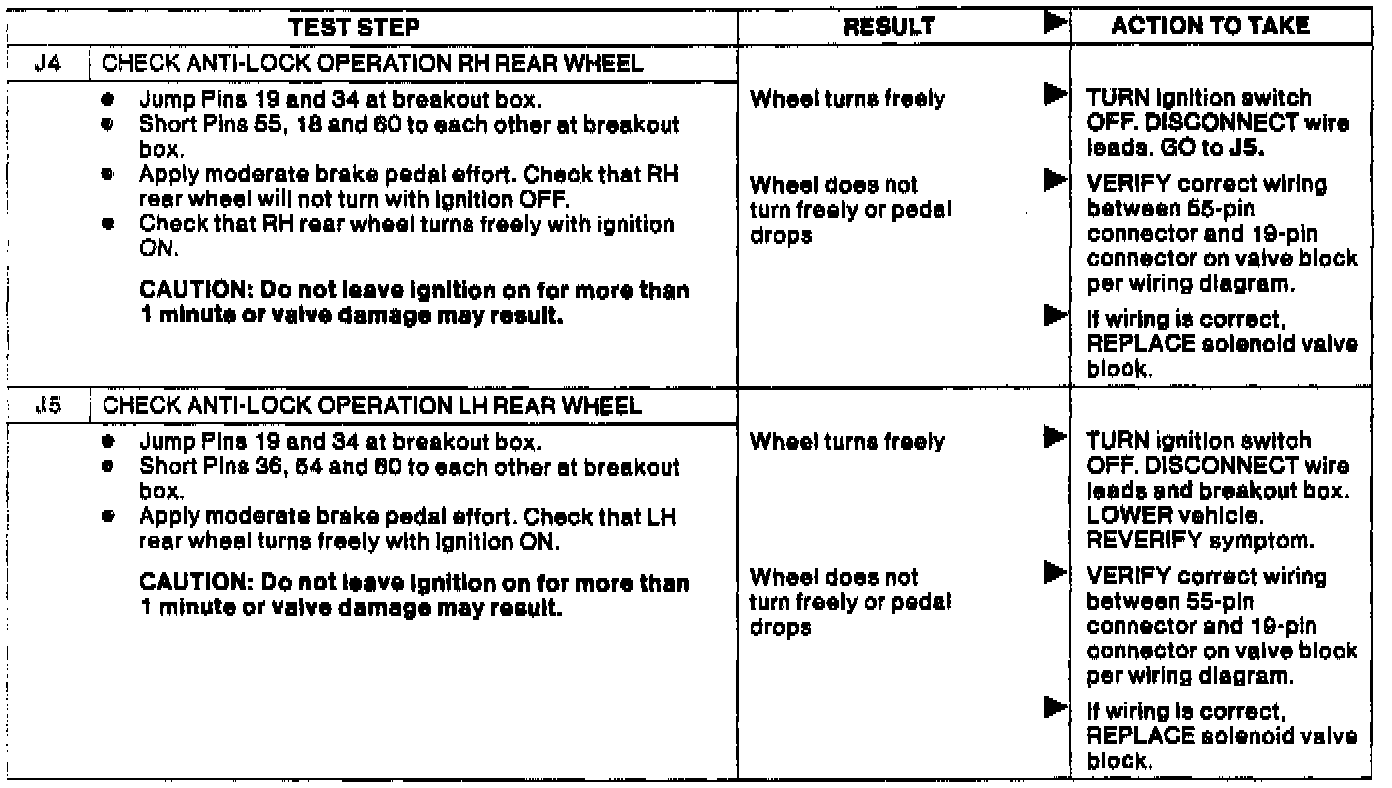

Fig. 26 Pinpoint Test J, Poor Vehicle Tracking During ABS Function, Warning Lamp Off (Part 3 Of 3). Thunderbird/Cougar:
