J Poor Tracking During ABS Function
>>
J2 to J3
J2 to J3

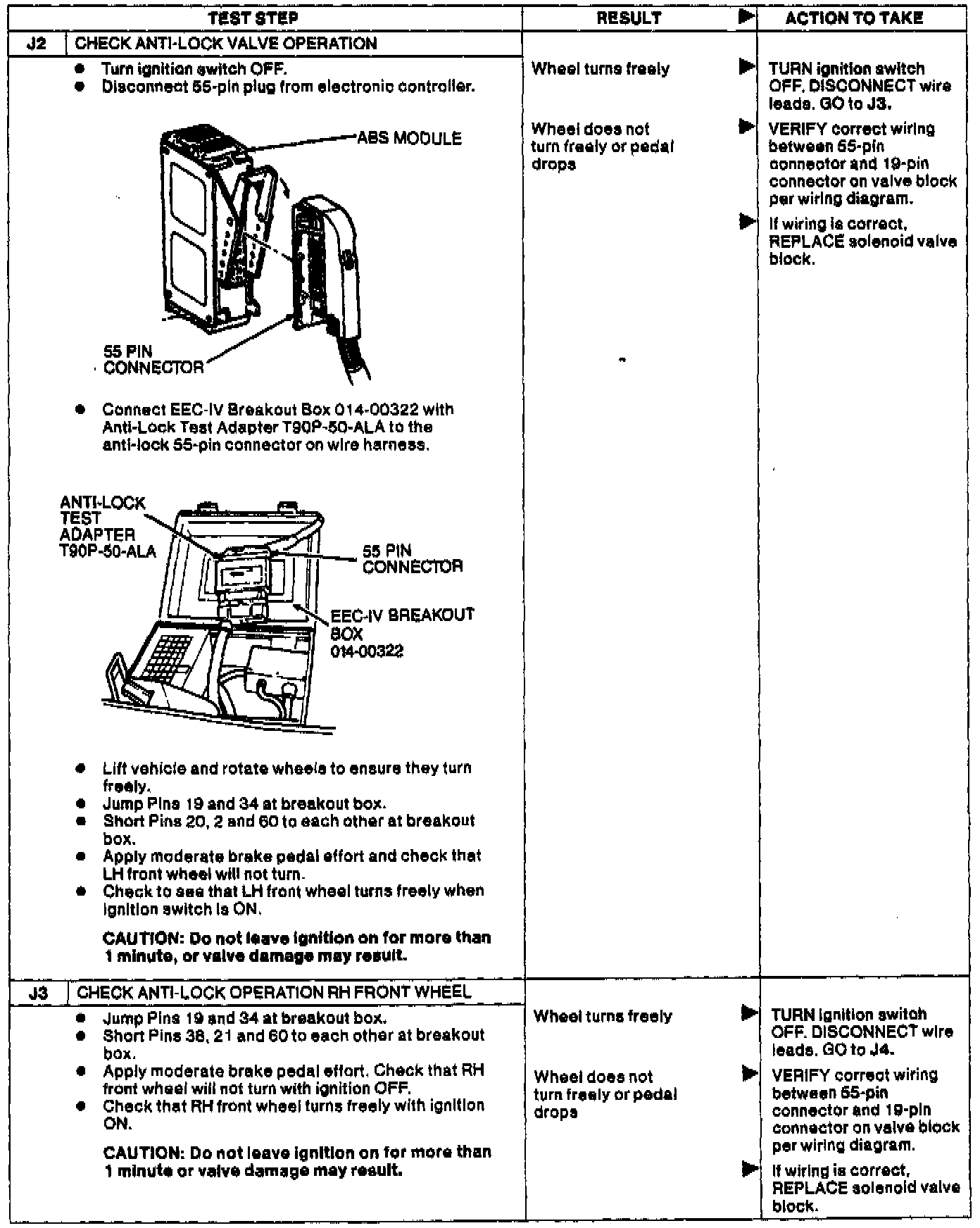

Fig. 26 Pinpoint Test J, Poor Vehicle Tracking During ABS Function, Warning Lamp Off (Part 2 Of 3). Thunderbird/Cougar:
