G No Warning Lamp On When Ignition Switch Turned On
G No Warning Lamp On When Ignition Switch Turned On

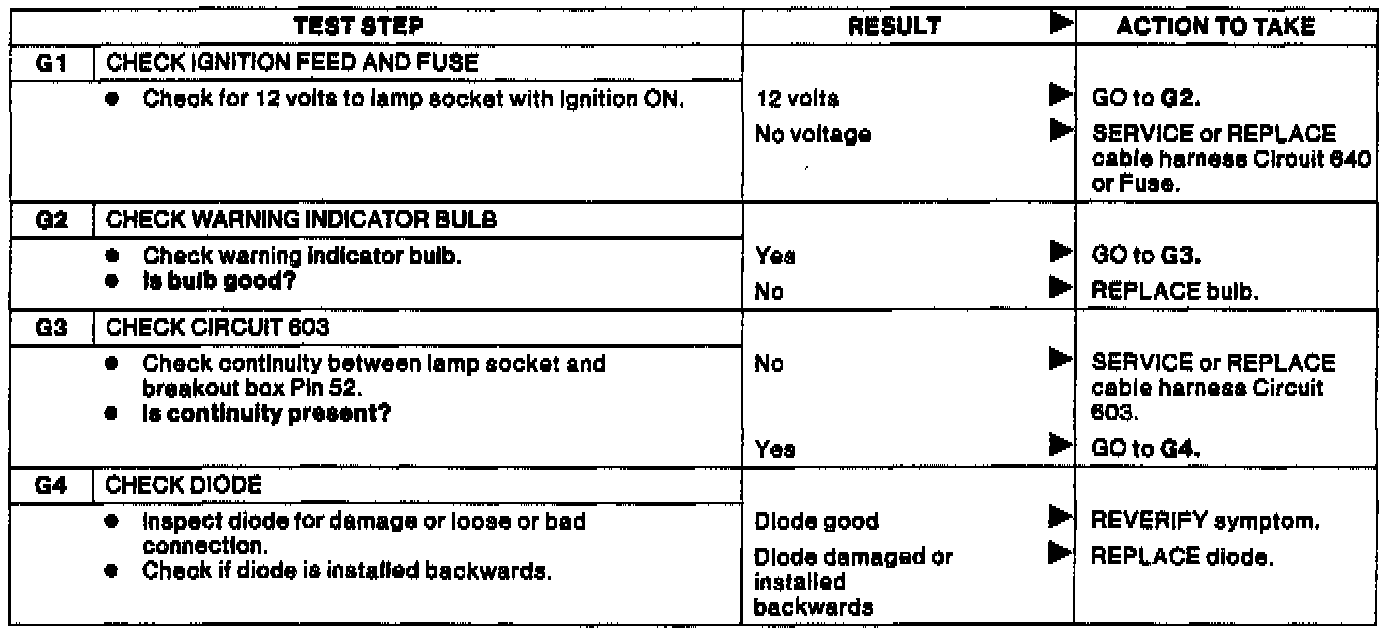

Fig. 24 Pinpoint Test G, No Warning Lamp On When Ignition Switch Turned On. Thunderbird/Cougar:
