Cougar/XR7 V6-232 3.8L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
F Brake Lamp ON (Antilock Lamp OFF, Parking Brake OFF)
F Brake Lamp ON (Antilock Lamp OFF, Parking Brake OFF)

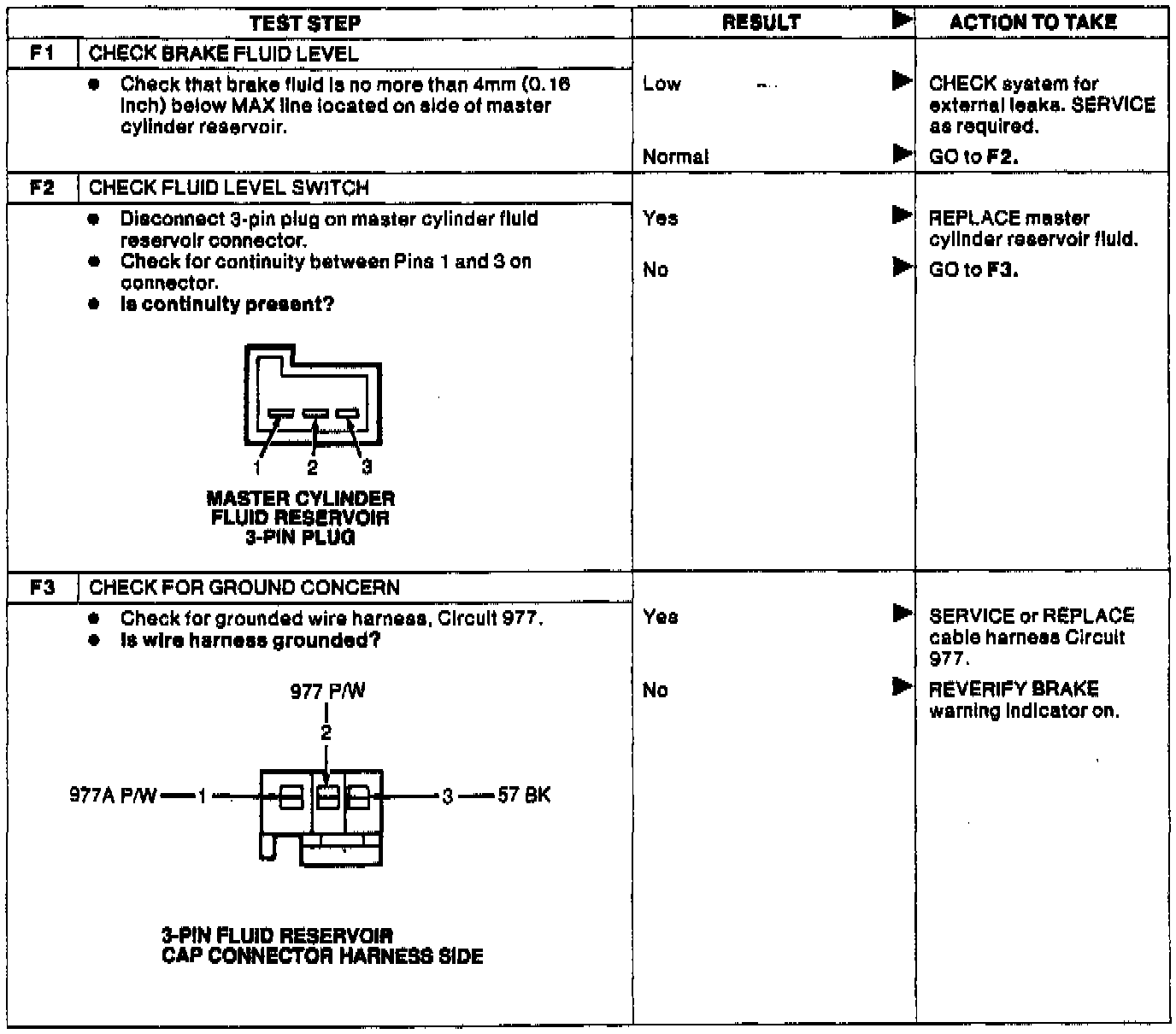

Fig. 23 Pinpoint Test F, Brake Warning Lamp On W/ABS Lamp Off, Parking Brake Released & Lining Wear Checked:
