Home >> Mercury >> 1993 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> EE Fluid Level Indicator/Pedal Travel Switch/Pressure Switch >> EE1 to EE2

EE1 to EE2

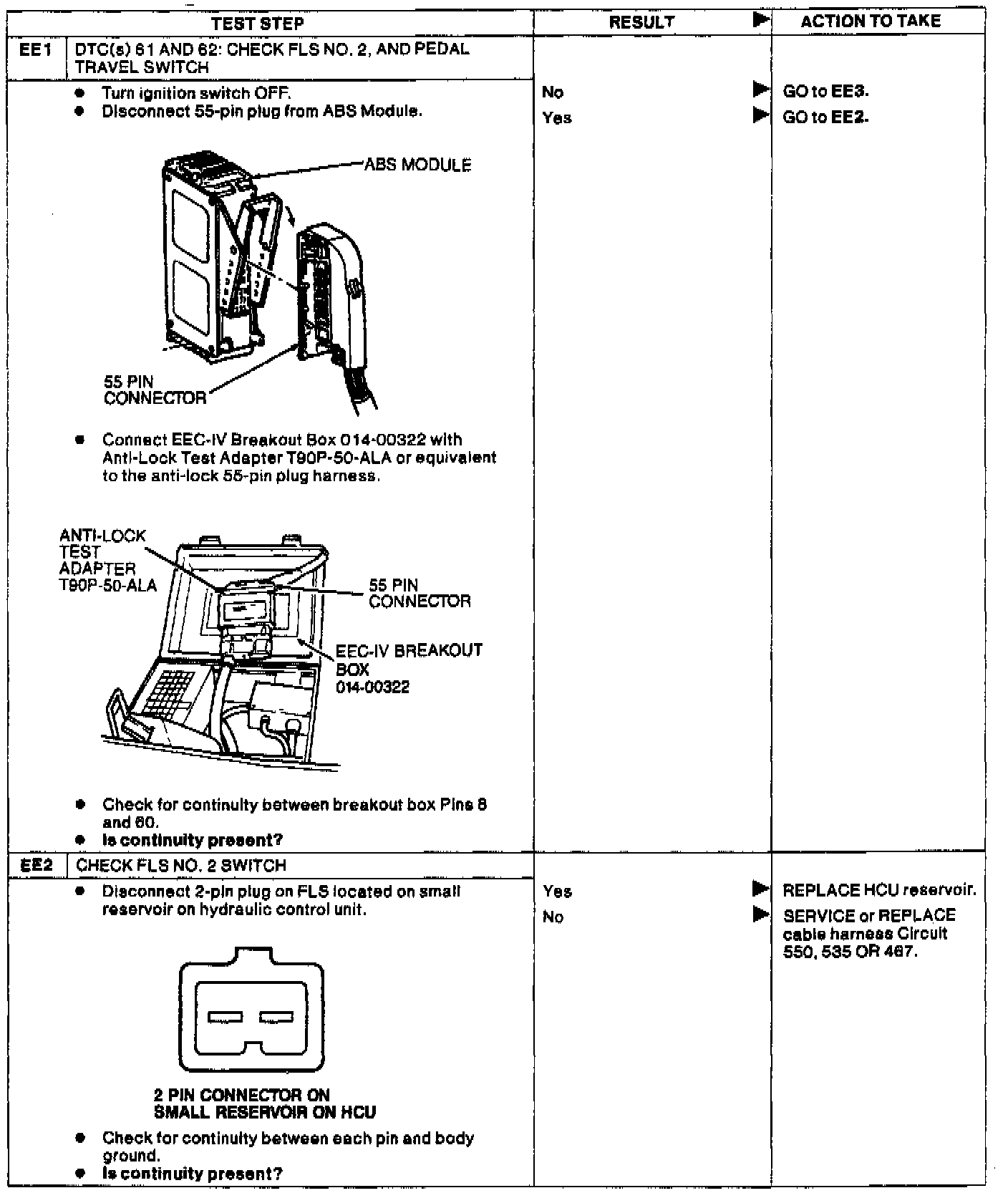

Test EE, Fluid Level Indicator/Pedal Travel Switch/Motor Pump Diagnosis (Part 1 Of 7). Thunderbird/Cougar:
