Home >> Mercury >> 1993 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> DD Wheel Sensor Diagnosis >> DD9 to DD11

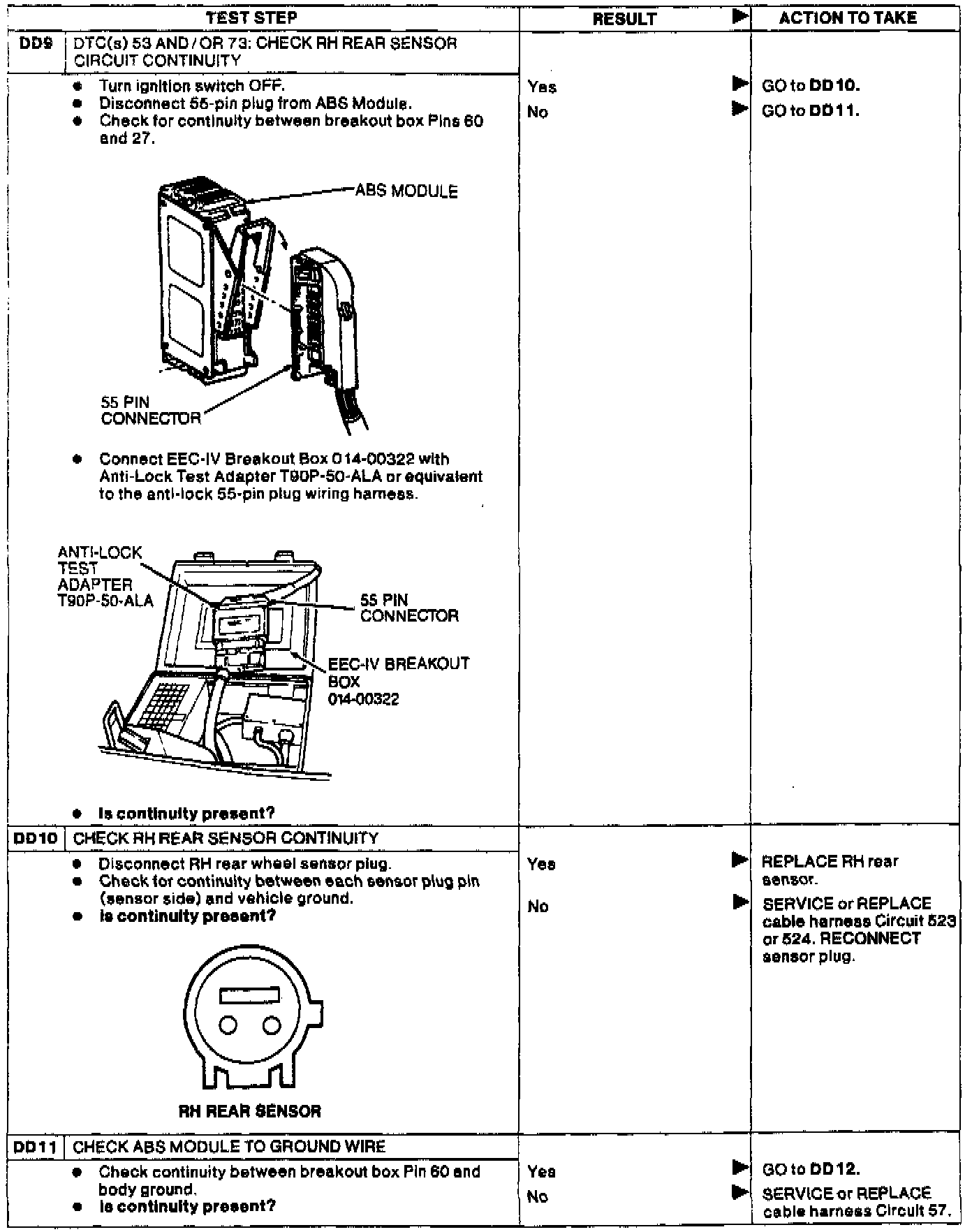

DD9 to DD11

Test DD, Wheel Sensor Diagnosis (Part 4 Of 6). Thunderbird/Cougar:
