D Brake Pedal Rises or Drops Excessively During ABS Cycling
D Brake Pedal Rises or Drops Excessively During ABS Cycling

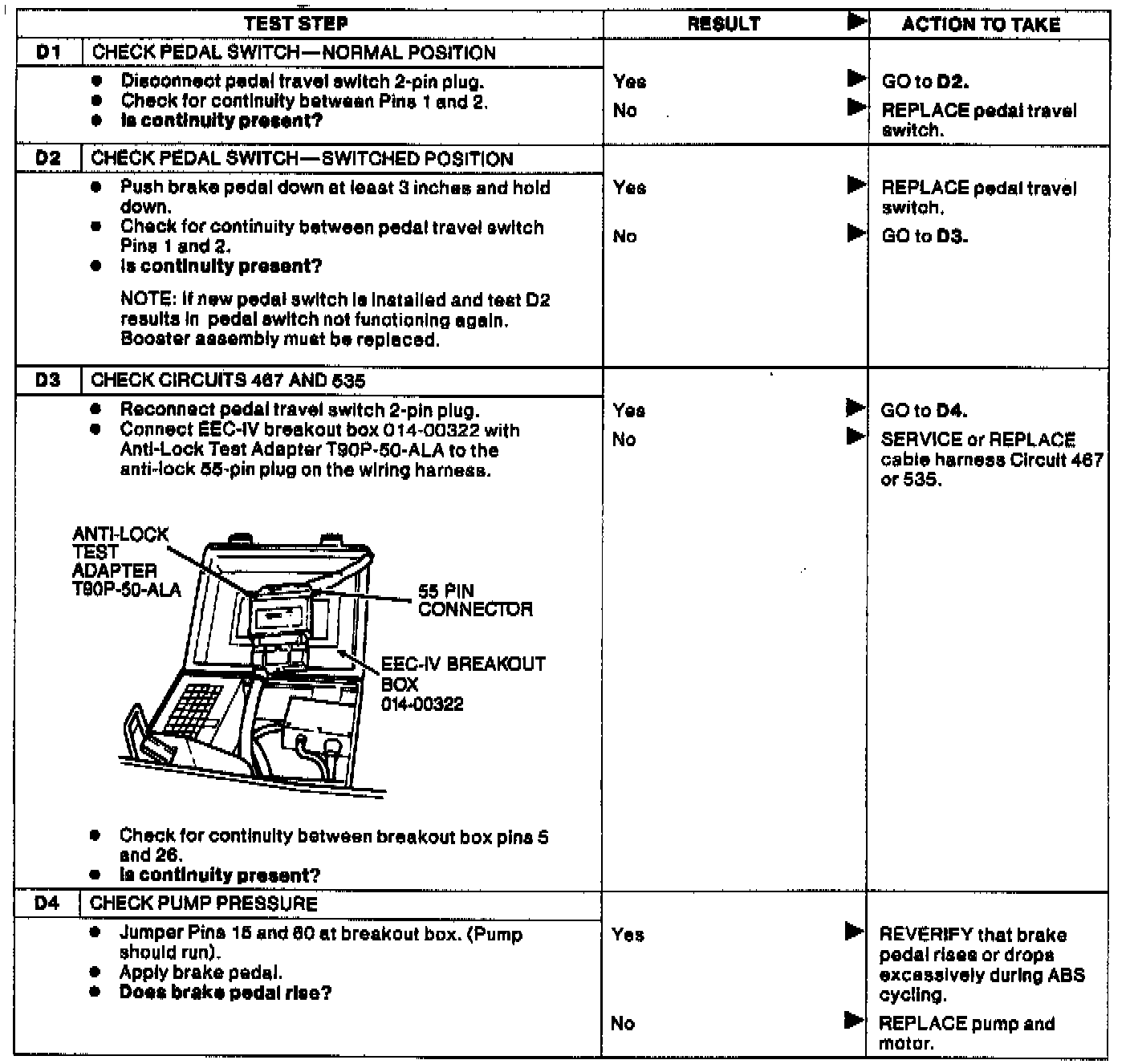

Fig. 21 Pinpoint Test D, Brake Pedal Rises Or Drops Excessively During ABS Cycling. Thunderbird/Cougar:
