Home >> Mercury >> 1993 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> CC DTC 31, 35, 41, 55 or 75 LH ABS Brake Sensor and Circuit >> CC3 to CC7

CC3 to CC7

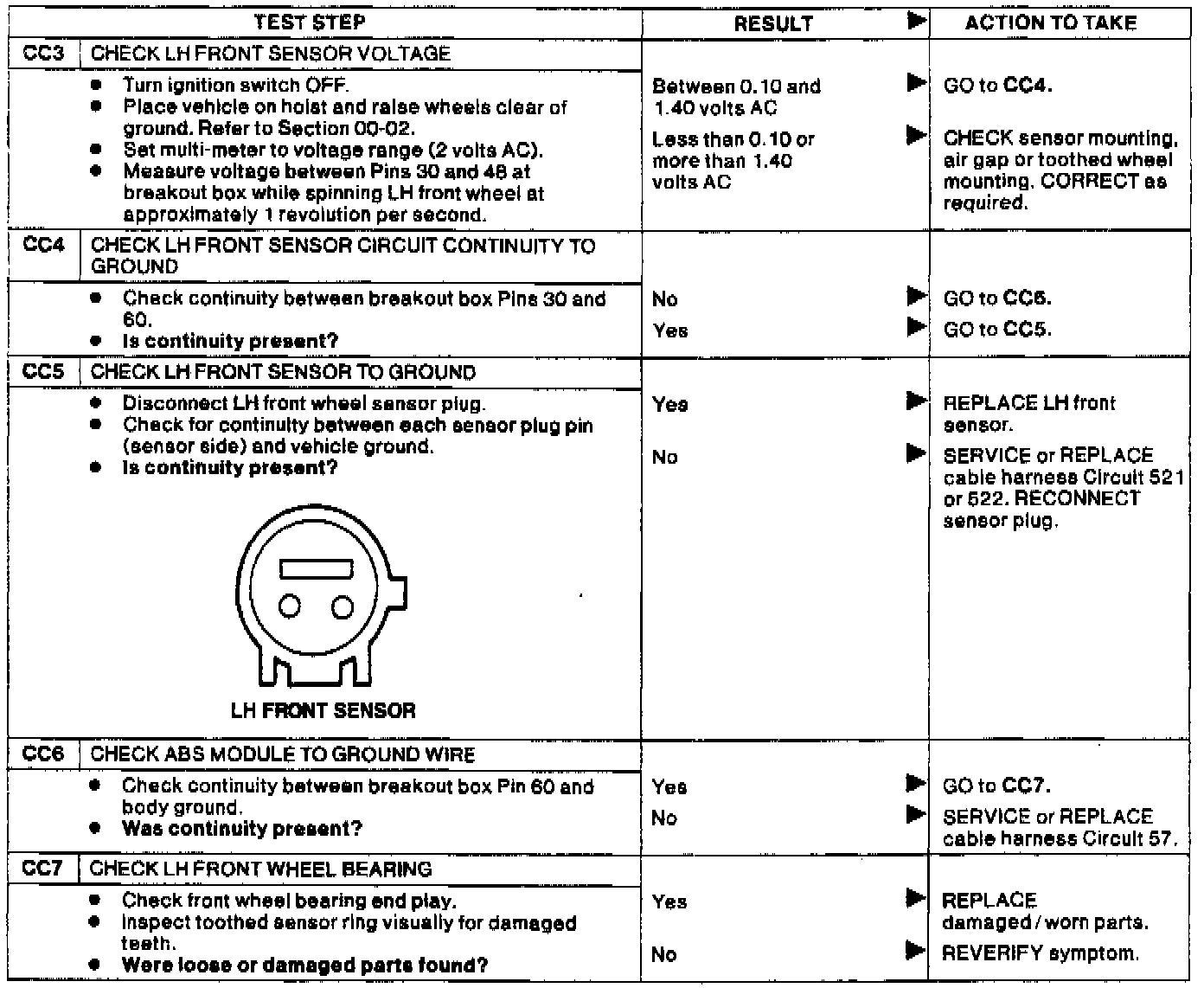

Test CC, Wheel Sensor Diagnosis (Part 2 Of 8). Thunderbird/Cougar:
