C Indicator ON or False Cycling
>>
C34 to C35
C34 to C35

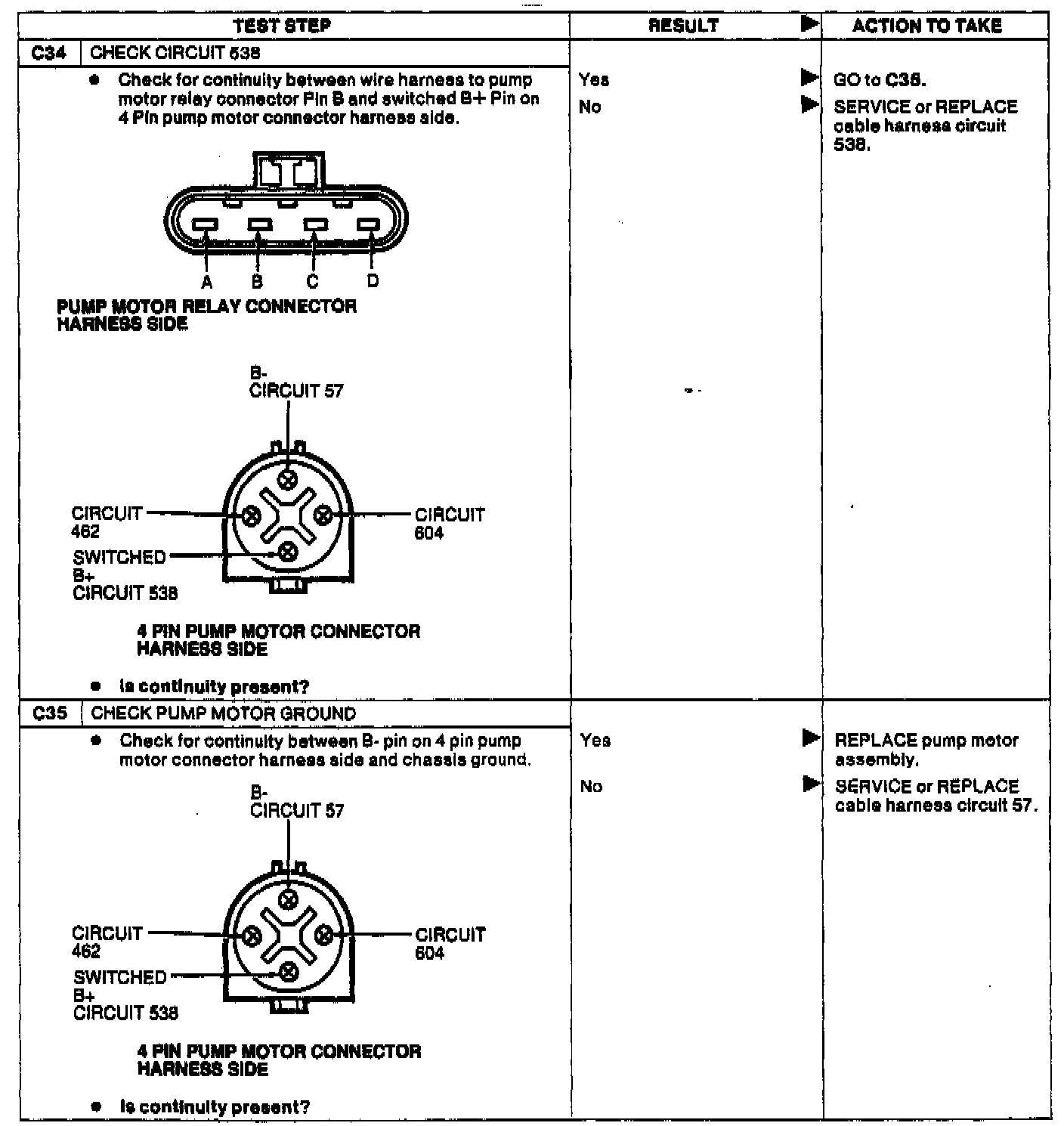

Fig. 20 Pinpoint Test C, Warning Lamp On After Vehicle Moves /or False Cycling Of ABS System (Part 7 Of 7). Thunderbird/Cougar:
