C Indicator ON or False Cycling
>>
C27 to C31
C27 to C31

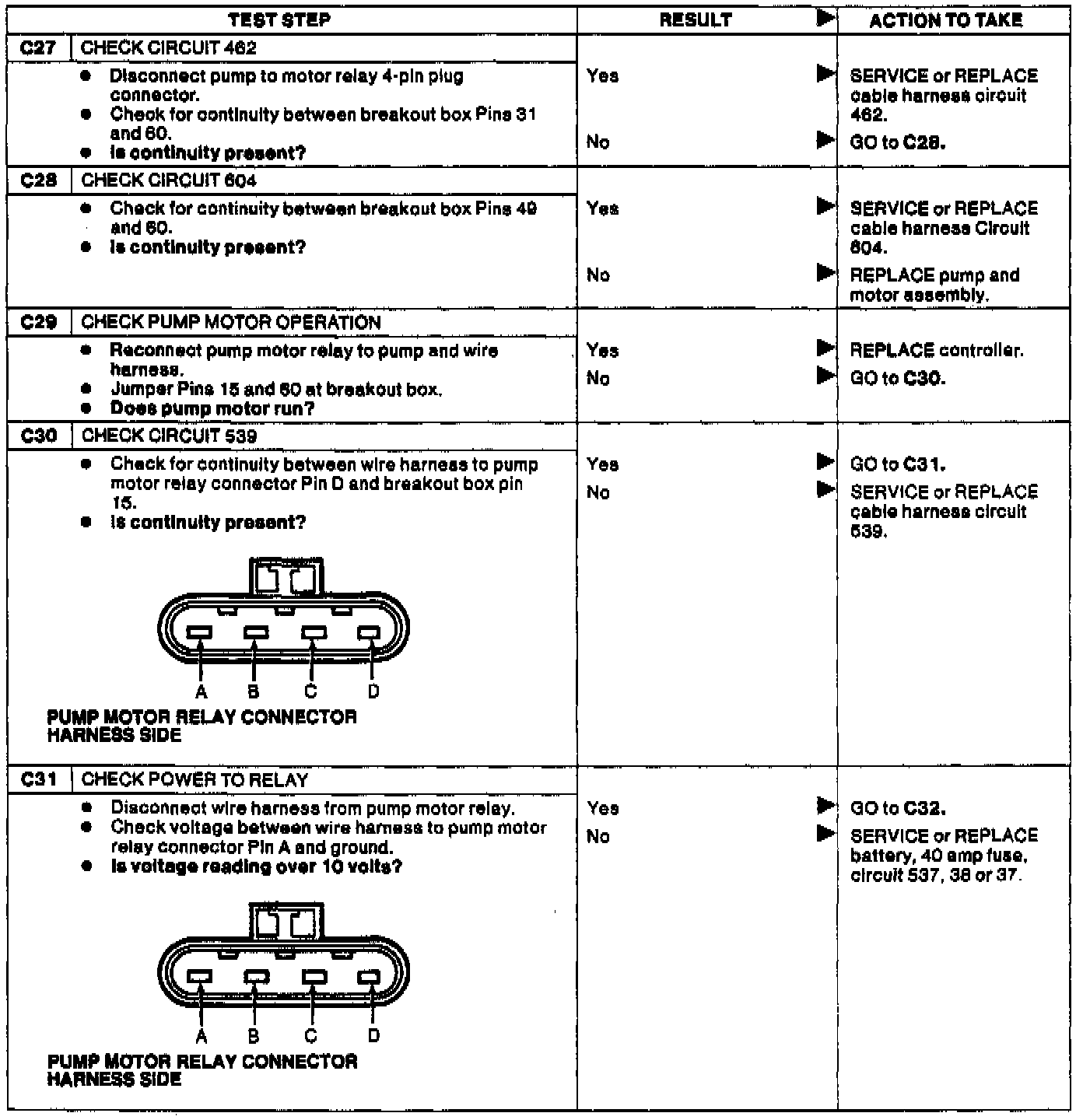

Fig. 20 Pinpoint Test C, Warning Lamp On After Vehicle Moves /or False Cycling Of ABS System (Part 5 Of 7). Thunderbird/Cougar:
