FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1993
>>
Cougar/XR7 V6-232 3.8L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
C Indicator ON or False Cycling
>>
C19 to C26
C19 to C26

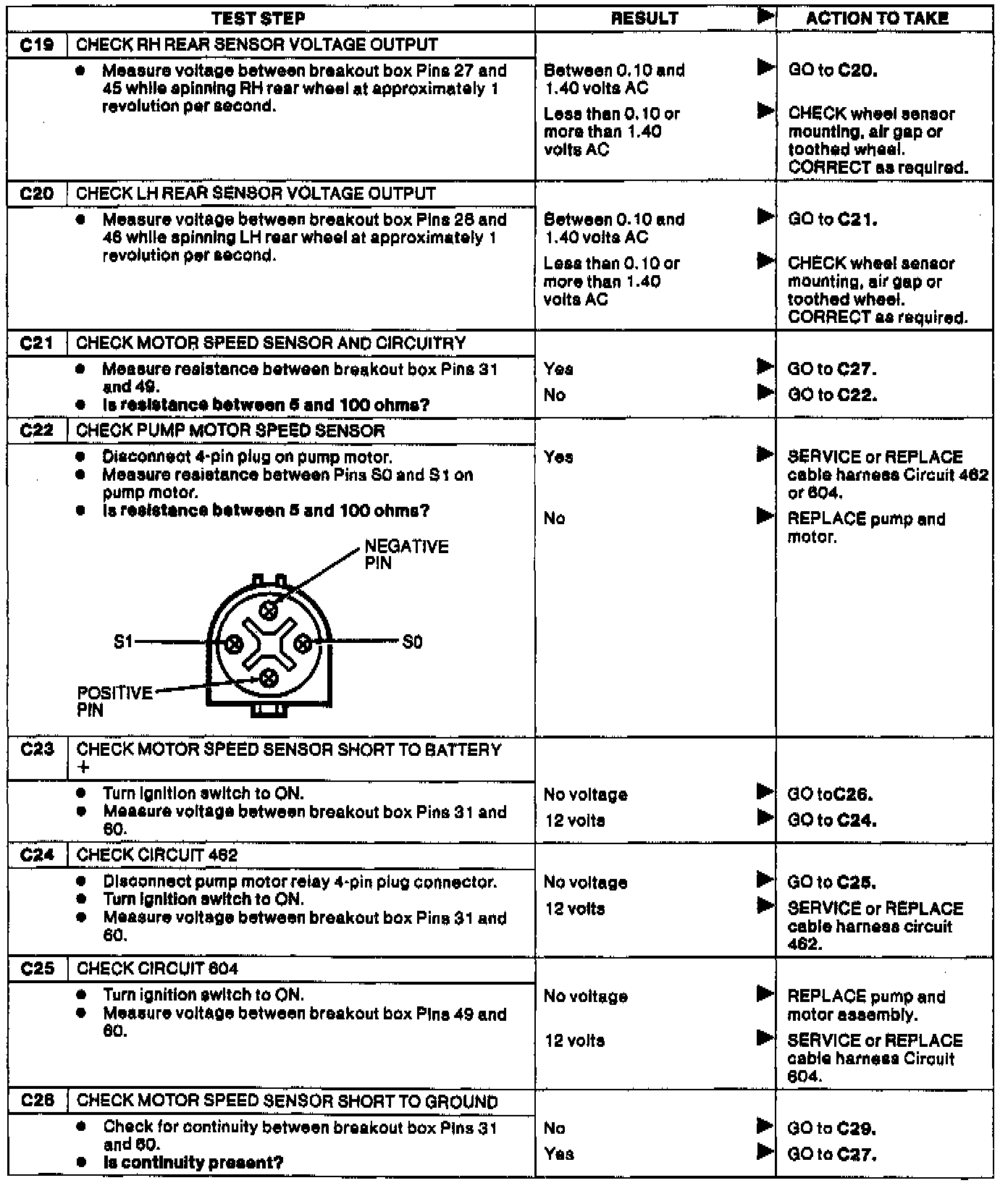

Fig. 20 Pinpoint Test C, Warning Lamp On After Vehicle Moves /or False Cycling Of ABS System (Part 4 Of 7). Thunderbird/Cougar:
