Home >> Mercury >> 1993 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> BB Solenoid Valve Diagnosis >> BB13 to BB16

BB13 to BB16

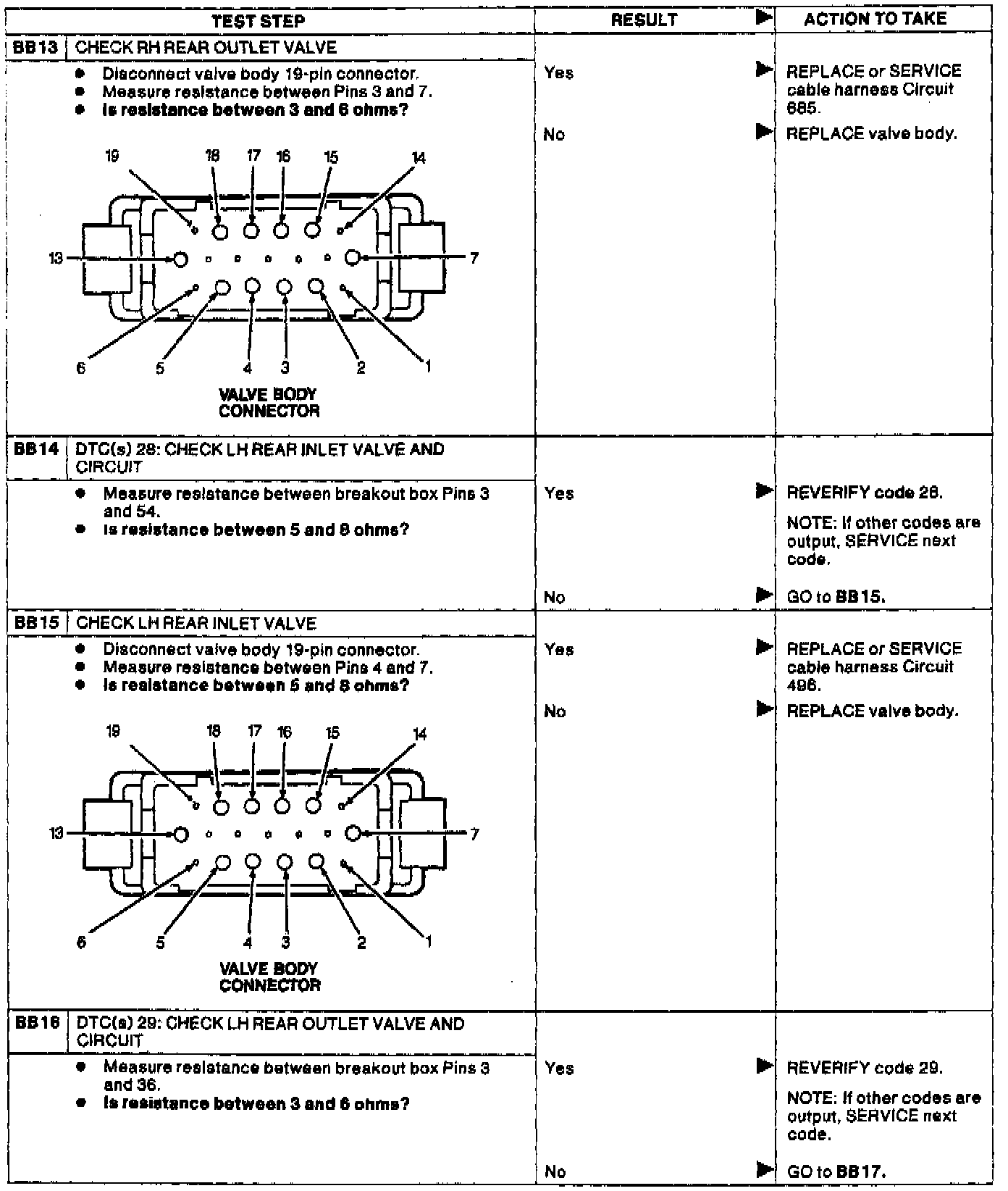

Test BB, Solenoid Valve & Isolation Valve Diagnosis (Part 5 Of 7):
