B ABS Lamp On After Engine Starts
>>
B4 to B8
B4 to B8

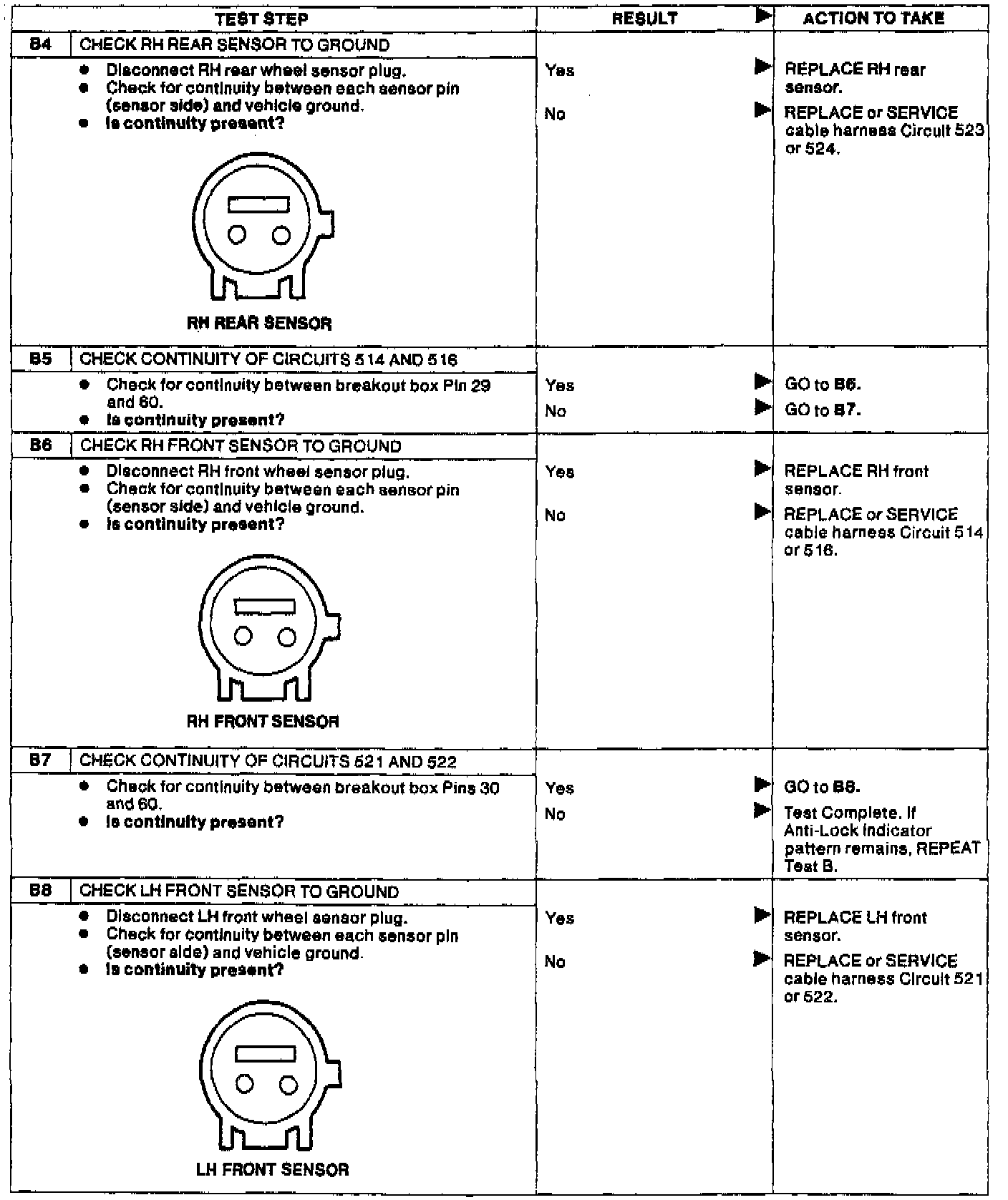

Fig. 19 Pinpoint Test B, ABS Warning Lamp On After Engine Starts (Part 2 Of 2).:
