A Warning Indicator ON/Brake Warning OFF)
>>
A1 to A7
A1 to A7

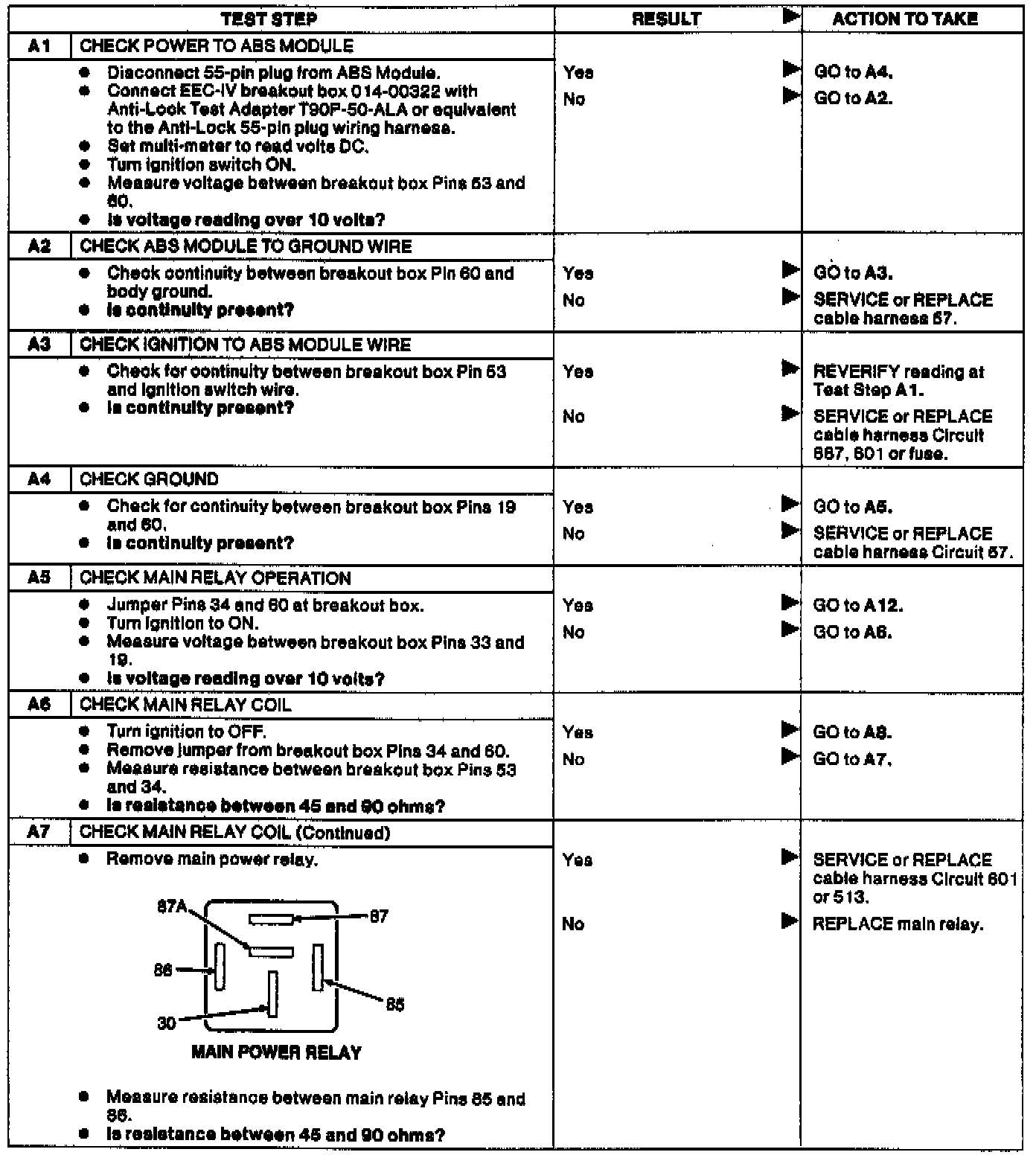

Fig. 18 Pinpoint Test A, ABS Warning Lamp On W/Brake Warning Lamp Off (Part 1 Of 3). Thunderbird/Cougar:
