Body - Collision Repair Manual Revision

Article No.
93-19B-6

09/29/93

BODY COLLISION REPAIR MANUAL - 1989 AND FORWARD - PAGE 16 - FRONT APRON/SIDEMEMBER AND FENDER REINFORCEMENT - FIGURE 1-9 REVISED

FORD:
1989-93 THUNDERBIRD

LINCOLN-MERCURY:
1989-93 COUGAR
1993 MARK VIII

ISSUE:
Front Apron/Sidemember and Fender Reinforcement Figure 1-9 requires revision to include configurations for 1993 Thunderbird/Cougar and 1993 Mark VIII vehicle applications. Page 16 of the Thunderbird/Cougar Body Collision Repair Manual (the manual is applicable to 1989 and newer model vehicles) is affected.





ACTION:

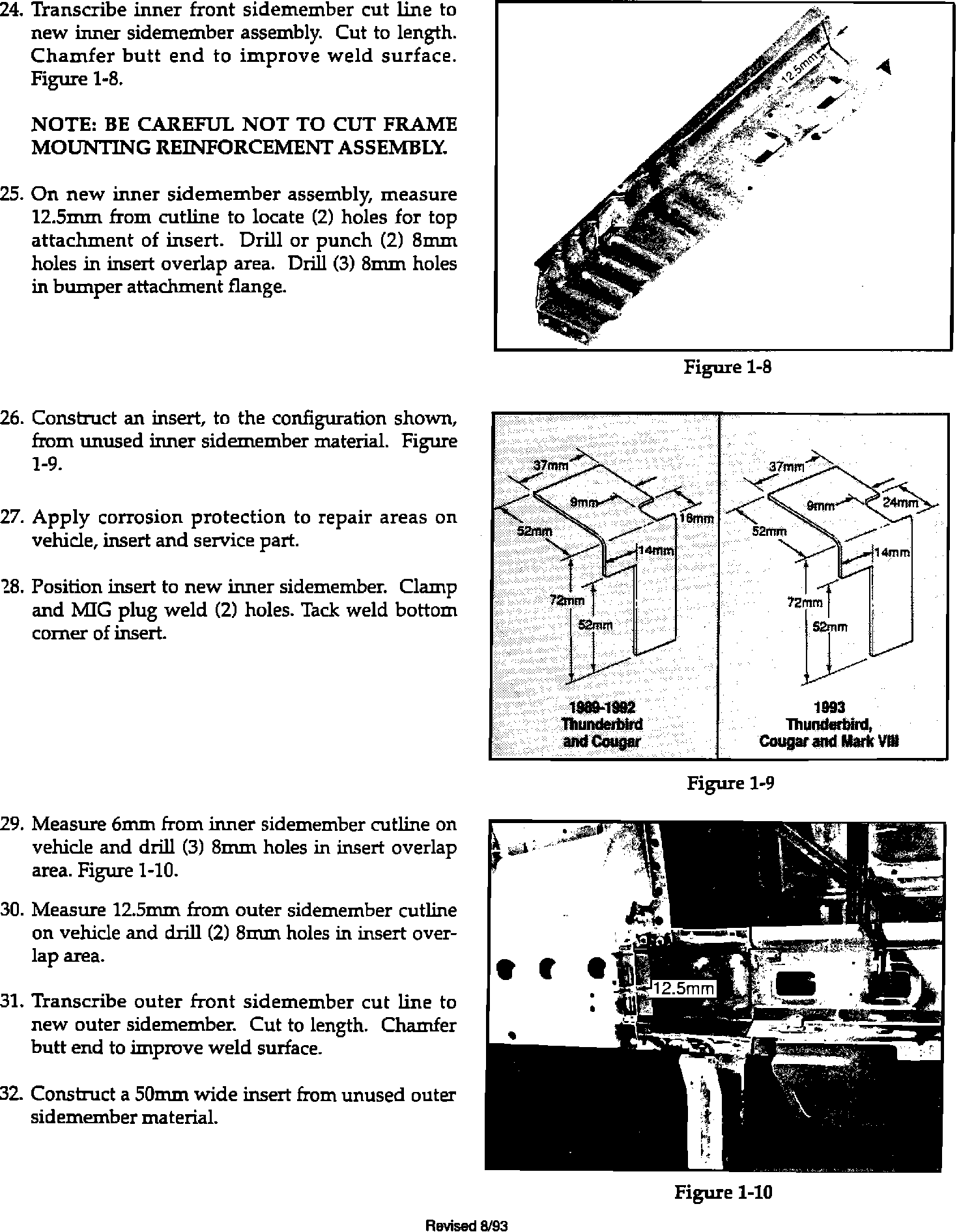

Refer to the page in this TSB article for the updated illustration.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 190000
