Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Fuel Delivery Diagnosis
>>
FC - High Fuel Pressure Test
>>
FC1 - Check Fuel Pressure Regulator For High Pressure
FC1 - Check Fuel Pressure Regulator For High Pressure

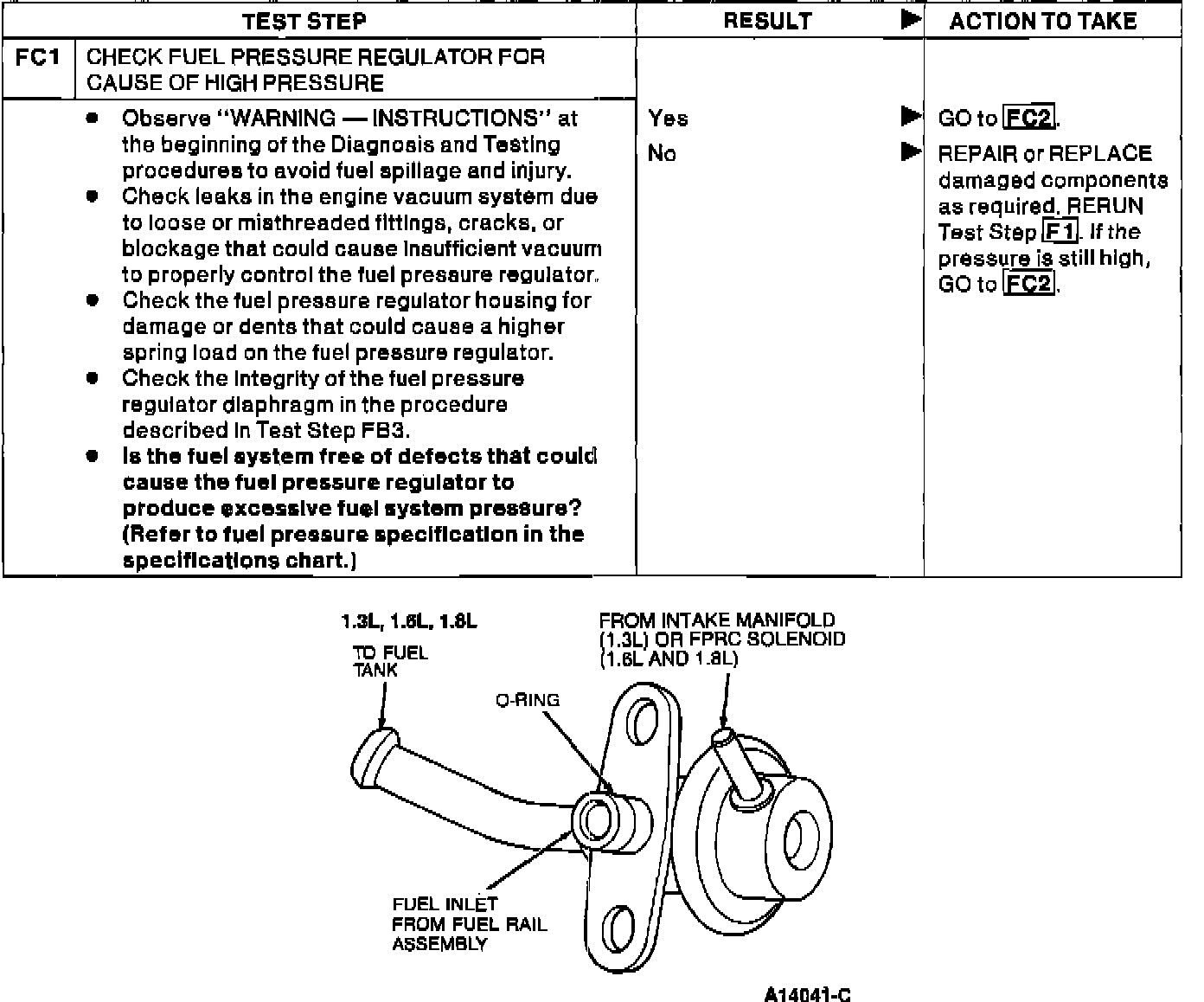

FC1 - Fuel Pressure Regulator (Part 1):

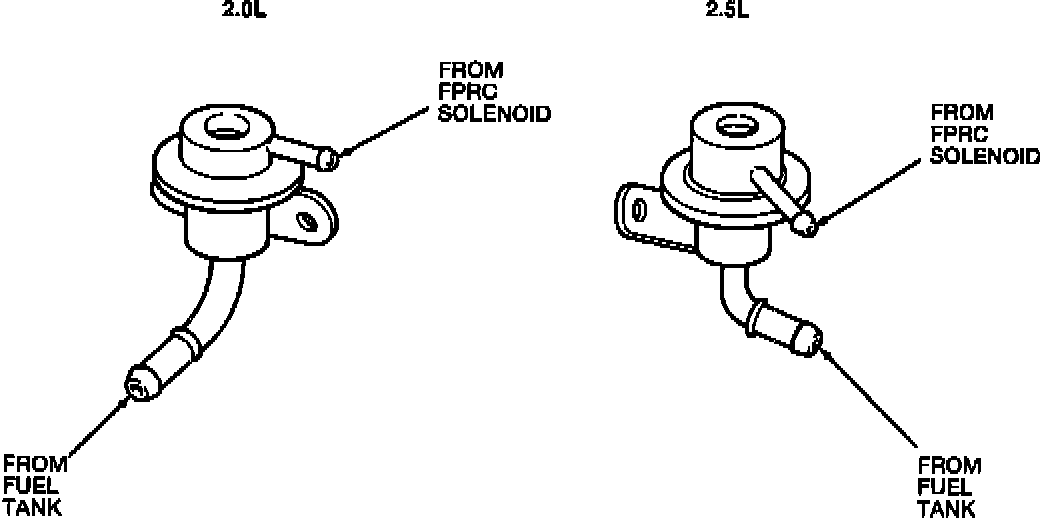

FC1 - Fuel Pressure Regulator (Part 2):

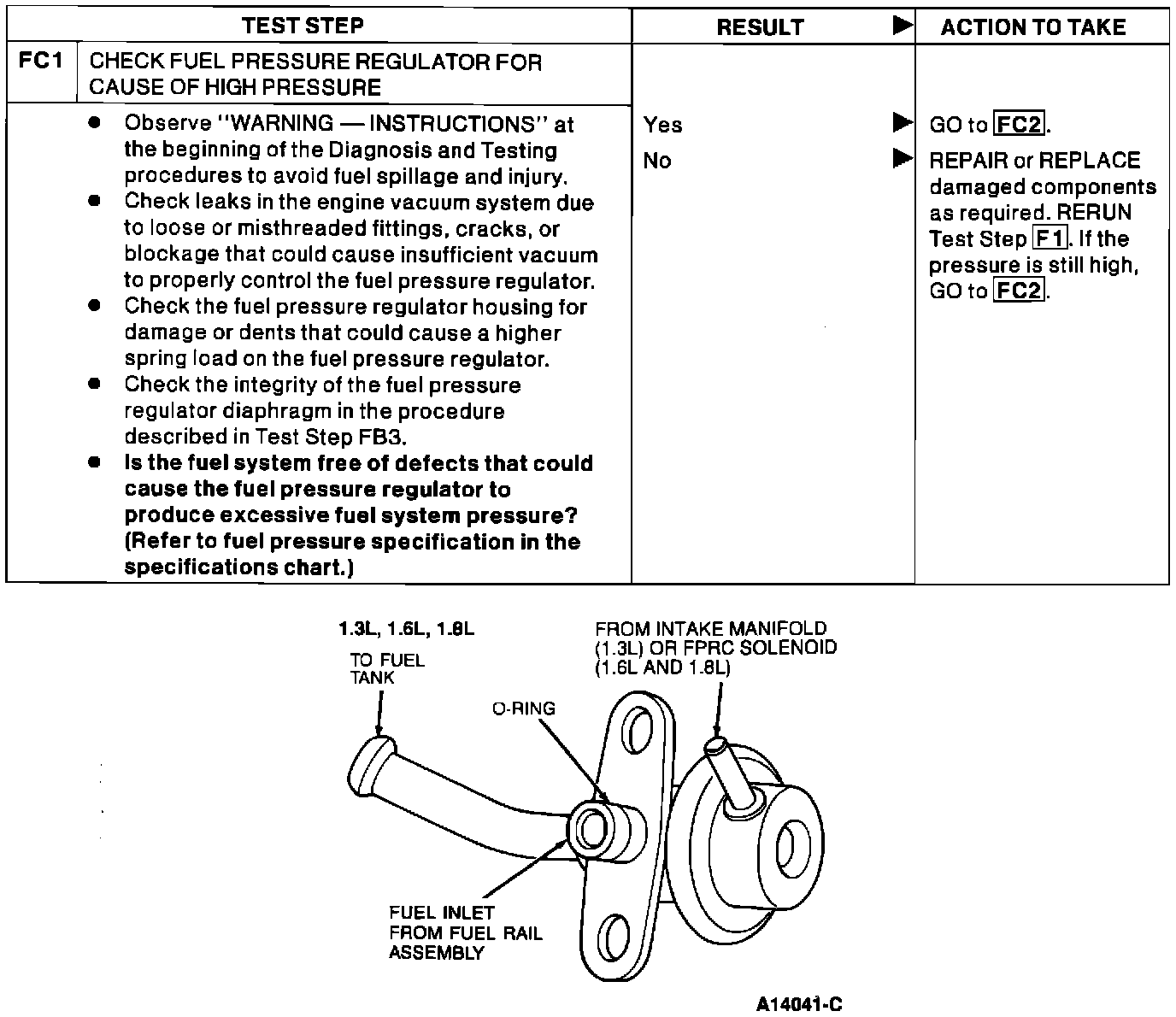

Pinpoint Test FC1:
