FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Mercury >> 1993 >> Capri L4-1597cc 1.6L DOHC >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Testing and Inspection >> Pinpoint Tests >> Fuel Delivery Diagnosis >> FA - No Fuel Pressure Test >> FA9 - Inertia Fuel Shutoff Switch

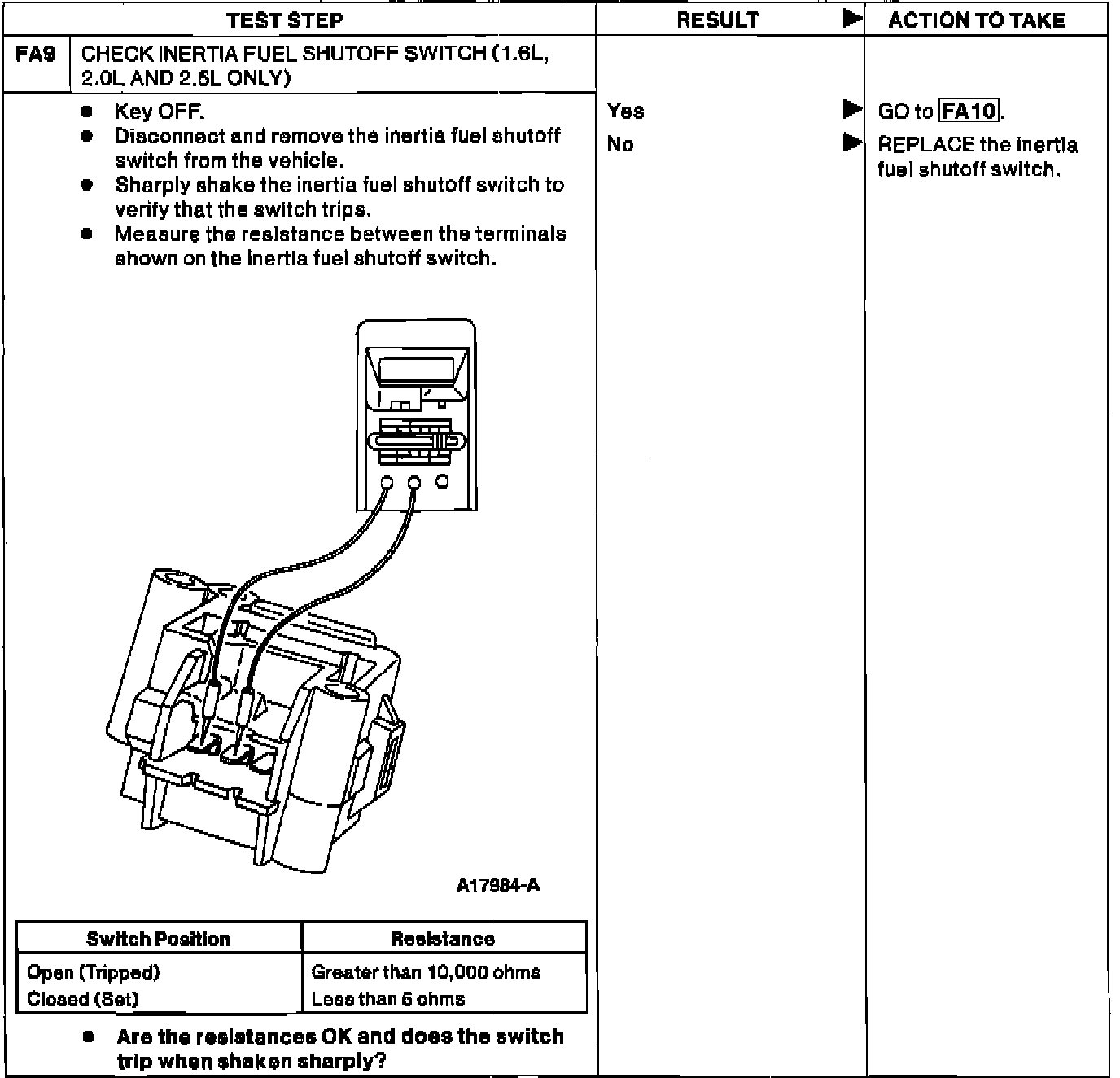

FA9 - Inertia Fuel Shutoff Switch

FA9 - Inertia Fuel Shutoff Switch:
