FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1993
>>
Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Testing and Inspection
>>
Pinpoint Tests
>>
BPA - Bypass Air Control System
>>
BPA3 - IAC Valve Resistance
BPA3 - IAC Valve Resistance

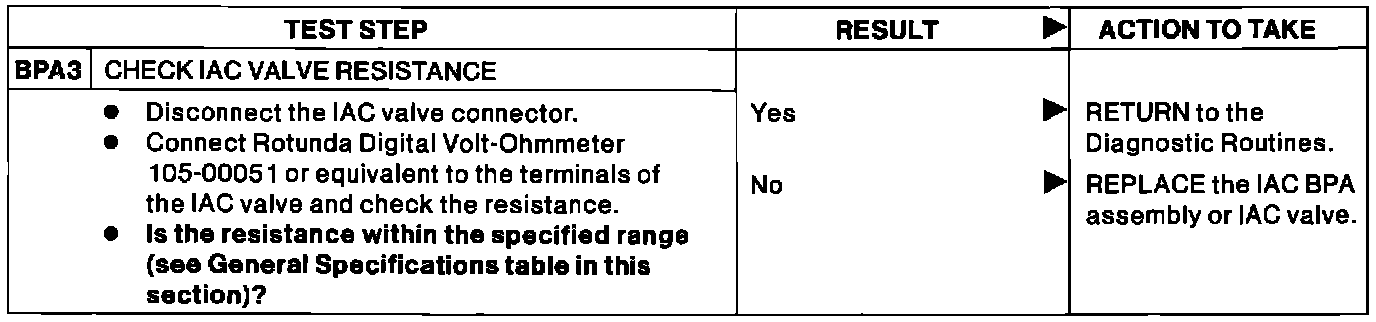

Pinpoint Test BPA3:
