ROC - Relay Output Check
>>
ROC3 - Check Relay Wire to PCM For Short
ROC3 - Check Relay Wire to PCM For Short

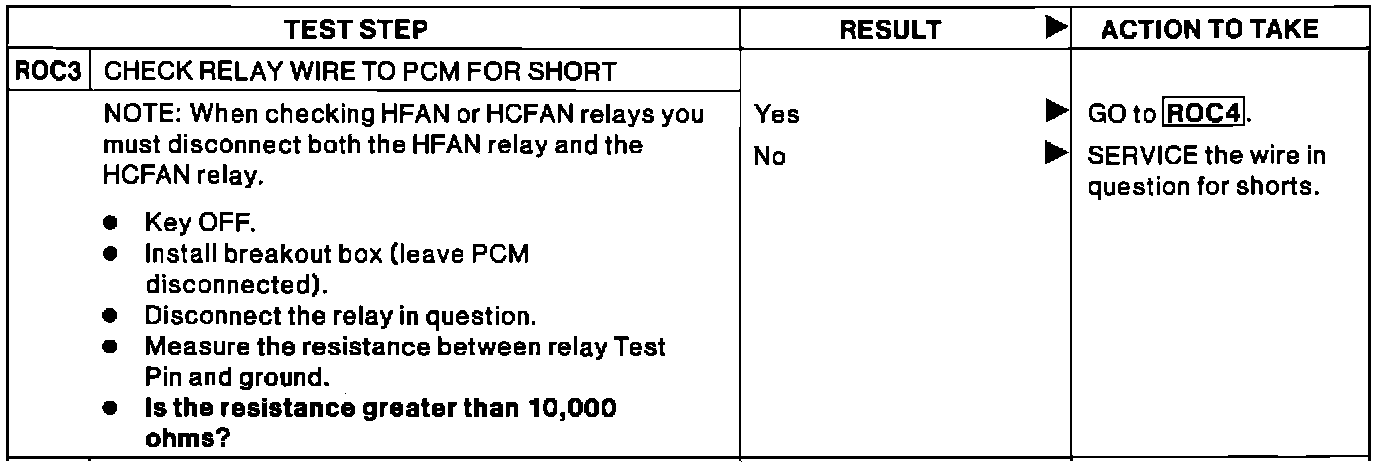

Pinpoint Test ROC3:
