Home >> Mercury >> 1993 >> Capri L4-1597cc 1.6L DOHC >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Lamps and Indicators - Engine >> Oil Pressure Gauge >> Testing and Inspection >> Component Tests and General Diagnostics >> Test B5 - B10

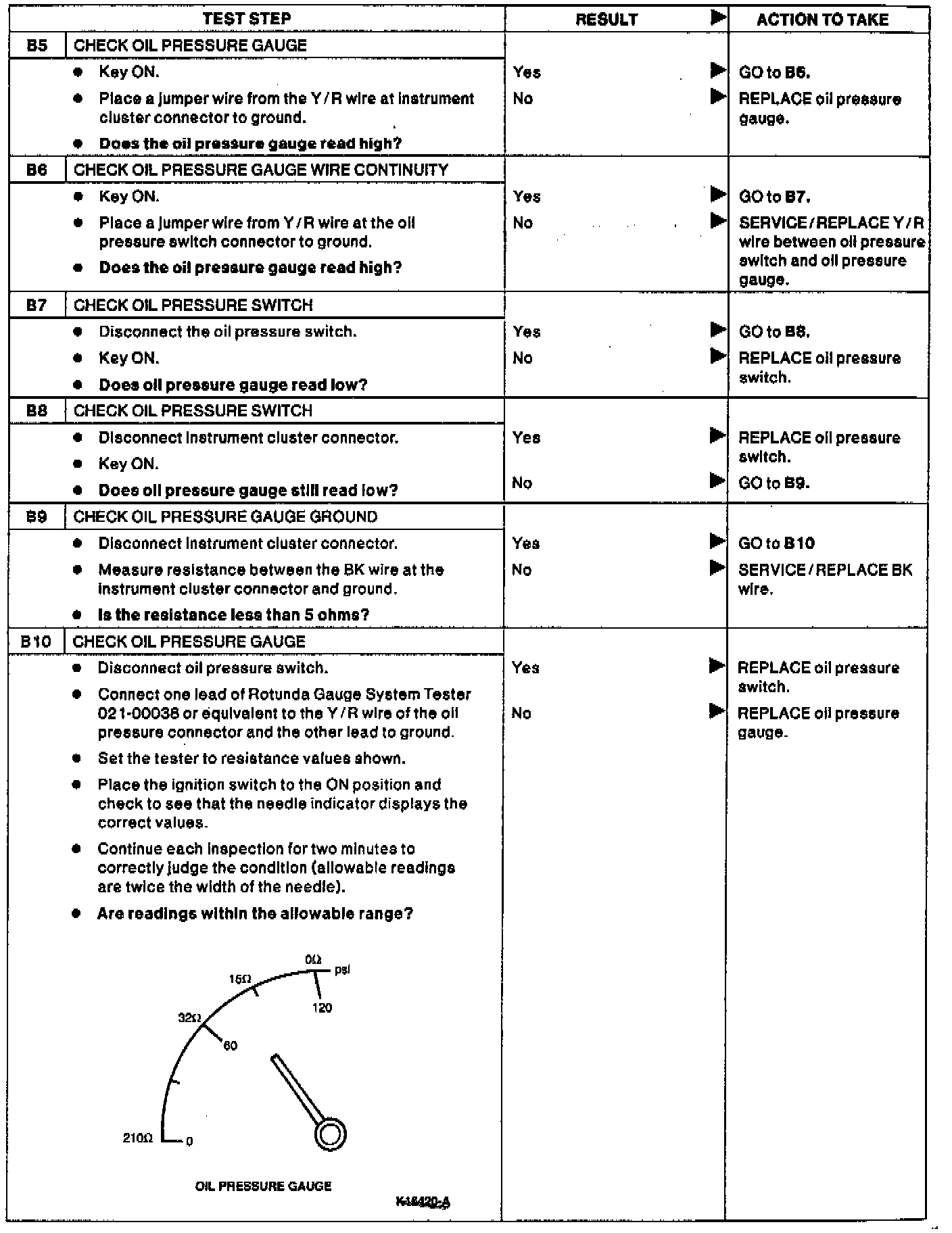

Test B5 - B10

Oil Pressure Gauge Diagnosis:
